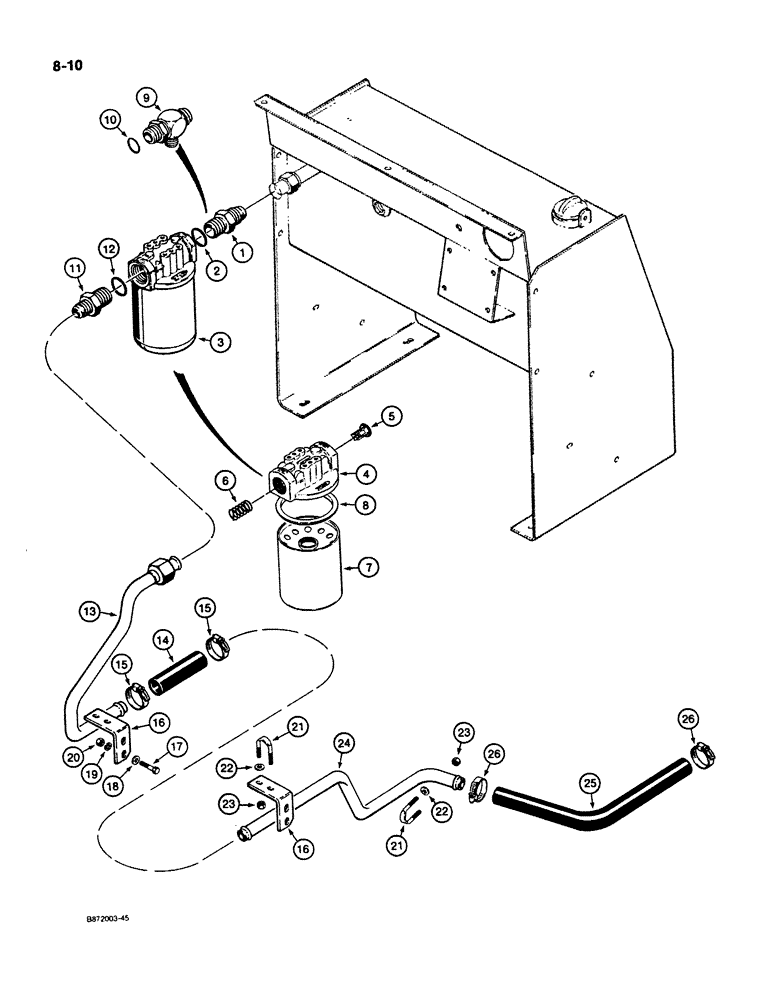

Запчасти Case W11B (8-010) - HYDRAULIC CIRCUIT, RETURN LINES - VALVE TO FILTER FOR MODELS W/ CLARK TRANSMISSION (08) - HYDRAULICS

1

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, models without auxiliary steering, Includes: Ref. 2

1шт.

For auxiliary steering hydraulic circuit see Figures 5-10 and 5-12.

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

3

L73855

FILTER

- hydraulic oil, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

5

D74434

VALVE POPPET

VALVE - bypass

1шт.

6

D80540

SPRING

- bypass valve

1шт.

D80538

FILTER

KIT - filter element, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

8

D80539

OIL SEAL

SEAL - element

1шт.

9

218-5293

TEE - filter to reservoir, models with auxiliary steering, Includes: Ref. 10 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

For auxiliary steering hydraulic circuit see Figures 5-10 and 5-12.

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Tee

1шт.

11

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, Includes: Ref. 12

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

13

L118201

TUBE ASSY.,25.4 mm OD

TUBE - return to filter, models without automatic auxiliary steering

1шт.

13

L127011

TUBE,25.4 mm OD

- return to filter, models with automatic auxiliary steering

1шт.

14

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

- return to filter, cut from 32798 hose, see below 25.40 mm ID x 133.40 mm ID, SAE 100R3

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

2шт.

16

L118177

SUPPORT

BRACKET - tube mounting

2шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

21

L78947

U-BOLT

- 5/16" - 18 NC x 1"

3шт.

22

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

6шт.

23

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

6шт.

24

L118199

TUBE,25.4 mm OD

- return

1шт.

25

L79056

HOSE

- return from valve, 1" (25 mm) ID x 21" (533 mm) long, cut from H169037 hose, see below

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

2шт.

32798

HOSE

- 1" (25 mm) ID x 6" (152 mm) long, not shown

1шт.

H169037

HOSE ASSY.

HOSE - 1" (25 mm) ID x 44" (1118 mm) long, not shown

1шт.
