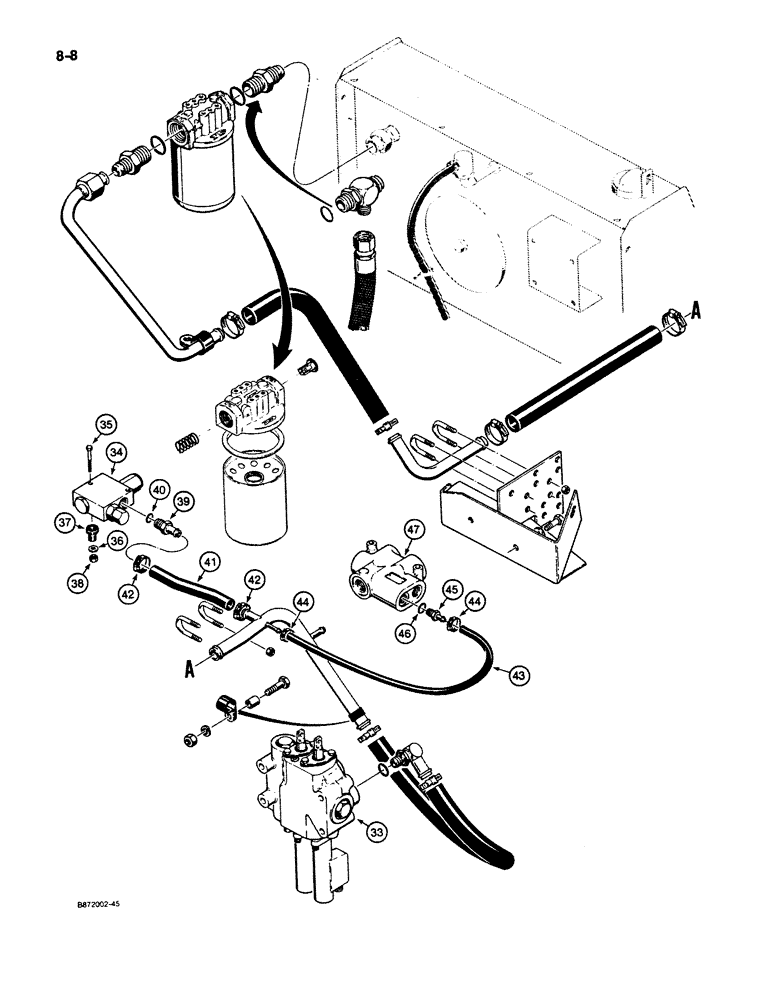

Запчасти Case W11B (8-008) - HYDRAULIC CIRCUIT, RETURN LINES FOR MODELS WITH FUNK TRANSMISSION (08) - HYDRAULICS

33

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-42 and 8-44 for correct valve

1шт.

34

L103844

VALVE

UNLOADING VALVE - parts list Figures 8-34

1шт.

35

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

36

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

2шт.

37

S120258

GROMMET,5/16" ID x 5/8" Groove Dia

CUSHION - rubber

2шт.

38

131-665

LOCK NUT,5/16"-18, GB

NUT, 5/16"-18, GB

2шт.

39

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, Includes: Ref. 40

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

41

L79701

HOSE

- unloading valve return, 5/8 inch (16 mm)

1шт.

ID x 8 inch (203 mm) long

1шт.

42

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

43

L74992

HOSE,0.25" ID x 18.00", SAE 100R3

1шт.

44

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

45

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

STEM FITTING - straight, Includes: Ref. 46

1шт.

46

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

47

L105296

VALVE

FLOW CONTROL VALVE - parts list Figure 8-34

1шт.
