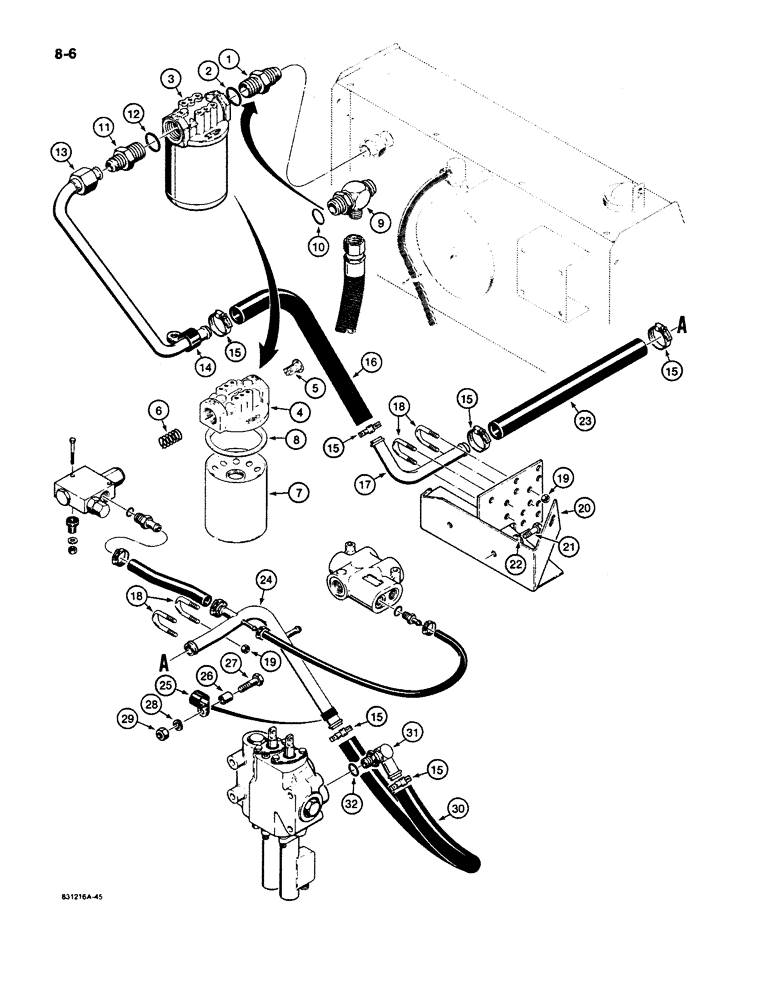

Запчасти Case W11B (8-006) - HYDRAULIC CIRCUIT, RETURN LINES FOR MODELS WITH FUNK TRANSMISSION (08) - HYDRAULICS

1

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, models without auxiliary steering, Includes: Ref. 2

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

3

L73855

FILTER

- hydraulic oil, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

5

D74434

VALVE POPPET

POPPET - filter head

1шт.

6

D80540

SPRING

- poppet

1шт.

D80538

FILTER

KIT - filter element, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

8

D80539

OIL SEAL

SEAL - element

1шт.

9

218-5293

TEE - filter to reservoir, models with auxiliary steering, Includes: Ref. 10 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

For auxiliary steering hydraulic circuit see Figure 5-10.

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Tee

1шт.

11

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, Includes: Ref. 12

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

13

L74808

TUBE ASSY.,1" OD x 22.24, 18.31" L

TUBE - models without auxiliary steering

1шт.

13

L78292

TUBE ASSY.,1" OD x 22.23, 20.25" L

TUBE - models with auxiliary steering

1шт.

For auxiliary steering hydraulic circuit see Figure 5-10.

1шт.

14

L73714

CLAMP

- tube

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

6шт.

16

L70286

HOSE,1.00" ID x 18.00"

Return, Filter 1.00" ID x 18.00"

1шт.

17

L74984

ELBOW

TUBE - 90 degree

1шт.

18

L78947

U-BOLT

- 5/16" - 18 NC x 1"

4шт.

19

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

8шт.

20

L112223

BRACKET

- tube mounting

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

22

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

23

L79056

HOSE

- return from valve, 1" (25 mm) ID x 21" (533 mm) long

1шт.

24

L79041

TUBE

- from loader control valve

1шт.

25

R14668

CLAMP

- harness retaining

1шт.

26

33126

BUSHING

SPACER - clamp

1шт.

27

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

30

L70286

HOSE,1.00" ID x 18.00"

Control Valve 1.00" ID x 18.00"

1шт.

31

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Includes: Ref. 32

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.
