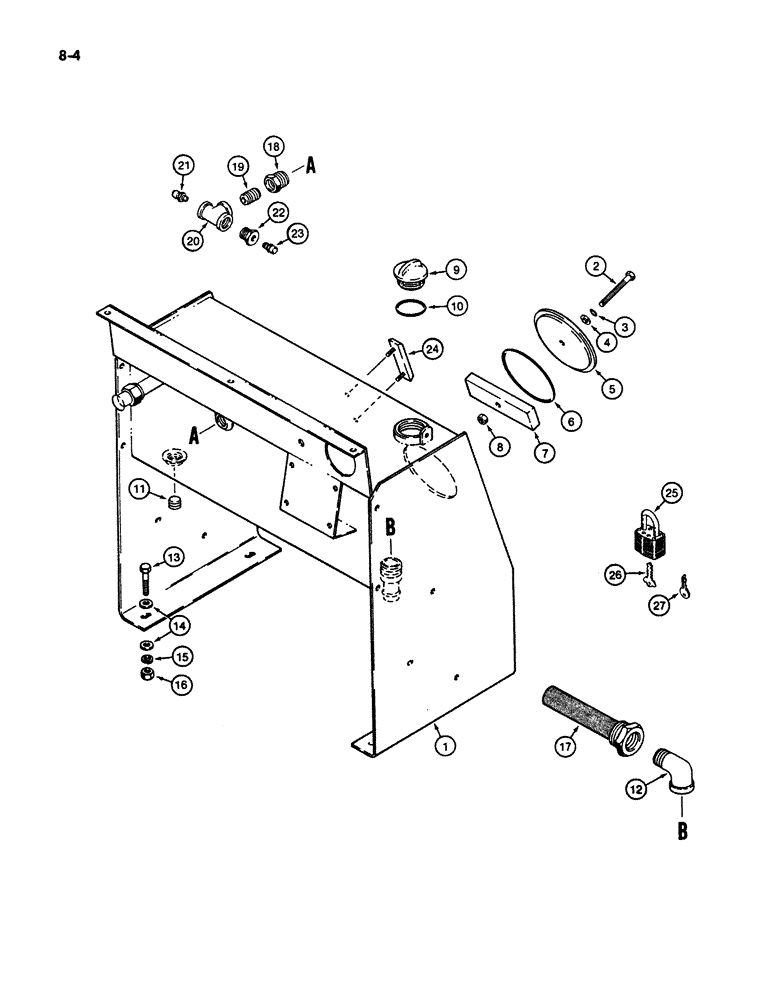

Запчасти Case W11B (8-004) - HYDRAULIC RESERVOIR, USED WITH CLARK TRANSMISSION (08) - HYDRAULICS

L118125

TANK

RESERVOIR ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic oil

1шт.

2

113-695

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, special thread length

1шт.

3

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- bolt seal

1шт.

4

L78045

WASHER

- flat, special

1шт.

5

L77124

COVER ASSY

COVER - access hole

1шт.

6

L111687

O-RING,6.975" ID x 0.275" Width

- cover

1шт.

7

L50741

BAR

- cover retaining

1шт.

8

131-510

LOCK NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

9

L100349

PLUG

CAP - fill

1шт.

10

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- fill cap

1шт.

11

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket head, 3/4" NPT, magnetic

1шт.

12

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

STREET ELBOW, 90 degree, 1-1/4" NPT

1шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

14

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

8шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

17

L76532

FILTER

- oil screen

1шт.

18

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

- 3/4" x 3/8" NPT

1шт.

19

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1"

1шт.

20

221-1423

TEE,Pipe, 3/8" NPT

- 3/8" NPT

1шт.

21

L126417

VALVE

BREATHER - with filter

1шт.

22

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING - 3/8 x 1/8 inch PT

1шт.

23

D38663

VENT

RELIEF VALVE - hydraulic reservoir

1шт.

24

L123639

GAUGE

- sight

1шт.

REF: 24 L123639 GAUGE INCLUDES 4 O-RINGS... PART NUMBER 238-5111..

1шт.

25

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 26 and 27

1шт.

26

R29555

KEY

- for Master padlock only

2шт.

27

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
