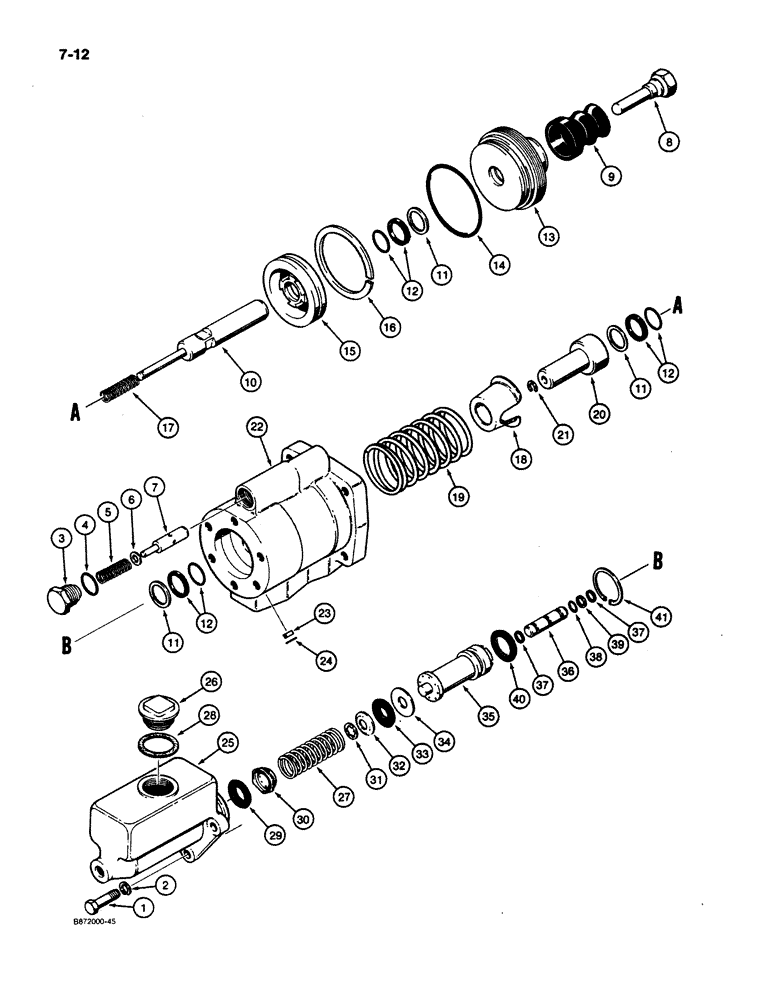

Запчасти Case W11B (7-012) - L79629 BRAKE ACTUATOR, MODELS WITH FRONT WHEEL BRAKES ONLY (07) - BRAKES

L79629

VALVE

ACTUATOR ASSEMBLY - brake, models with front wheel brakes only, no longer available, order L126954 brake actuator when replacing complete assembly, parts list Figure 7-15, Includes: Ref. 1 - 41

1шт.

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

2

492-11038

LOCK WASHER,3/8"

3шт.

D82919

KNIFE SECTION

CHAMBER - oil, Includes: Ref. 3 - 24

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - chamber

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

Part of kit, P/N D82920

1шт.

5

D87151

SPRING

- piston

1шт.

6

D87147

SHIM

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - chamber, upper

1шт.

8

D87141

STEM

ROD - push, outer

1шт.

9

N13012

GROMMET

COVER - rubber

1шт.

Part of kit, P/N D82920

1шт.

10

D87142

PISTON

ROD - inner

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup

3шт.

Part of kit, P/N D82920

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - two piece

3шт.

REF: 12A SEAL - THREE PIECE ASSY

1шт.

Part of kit, P/N D82920

1шт.

13

D87143

PLUG

COVER - end

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - cover

1шт.

Part of kit, P/N D82920

1шт.

15

D87144

PISTON

- chamber, lower

1шт.

16

NSS

NOT SOLD SEPARAT

RING - piston

1шт.

Part of kit, P/N D82920

1шт.

17

D87145

SPRING

- inner

1шт.

18

N6368

RETAINER

- spring

1шт.

19

D87148

SPRING

- outer

1шт.

20

D87149

PISTON

ROD - actuator

1шт.

21

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of kit, P/N D82920

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - chamber

1шт.

23

N6679

FITTING

PLUG - snubber

1шт.

24

N6678

RING, SNAP

RING - retaining

1шт.

D82918

MASTER CYLINDER

MASTER CYLINDER - brake, Includes: Ref. 25 - 41

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

26

A12888

FILLER CAP

CAP - master cylinder

1шт.

27

D87140

SPRING

- master cylinder

1шт.

D82921

PACKAGE, REPAIR

KIT - master cylinder repair, Includes: Ref. 28 - 41

1шт.

28

S114797

SEAL,31.75mm ID x 41.27mm OD x 1.59mm Thk

- cap

1шт.

29

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

30

NSS

NOT SOLD SEPARAT

VALVE - master cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

32

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

35

NSS

NOT SOLD SEPARAT

PISTON - outer

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON - inner

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - V-type

2шт.

38

S114827

O-RING,0.364" ID x 0.504" OD x 0.07"

- piston

1шт.

39

S114807

SEALING RING

RING - backup

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

41

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

D82920

KIT

- oil chamber repair, Includes: Ref. 4, 9, 11, 12, 14, 16, 21

1шт.
