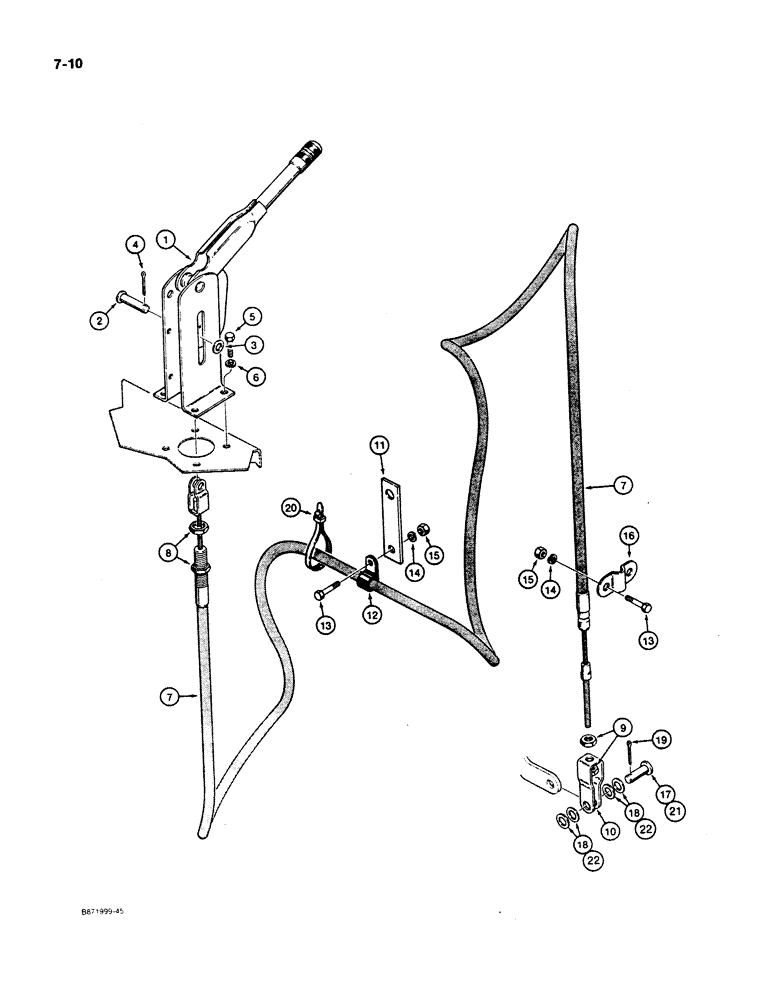

Запчасти Case W11B (7-010) - BRAKE SYSTEM, PARKING BRAKE (07) - BRAKES

L76701

LEVER

ASSEMBLY - parking brake, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

2

D82793

PIN

- lever

1шт.

3

195-103

WASHER,5/16"

- flat, 5/16 inch

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

L74521

CABLE

ASSEMBLY - parking brake, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE - parking brake

1шт.

8

129-146

NUT,Jam, 9/16"-12, G5

- hex jam, 9/16 inch NC

2шт.

9

129-122

NUT,5/16"-24, G5

2шт.

10

L33999

CLEVIS

- cable

1шт.

11

L78769

BRACKET

PLATE - clamp mounting, used on models with Funk transmission

1шт.

12

49836

CLAMP

- cable, used on models with Funk transmission

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2-3шт.

14

492-11038

LOCK WASHER,3/8"

2-3шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2-3шт.

16

D121608

CLAMP

- cable

1шт.

17

141-64

CLEVIS PIN,7/16" x 1.190"

used on models with Funk transmission 7/16" x 1.190"

1шт.

18

195-105

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch, used on models with Funk transmission

4шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

141-54

CLEVIS PIN,3/8" x 1 1/16"

used on models with Clark transmission 3/8" x 1 1/16"

1шт.

22

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used on models with Clark transmission 3/8"

4шт.
