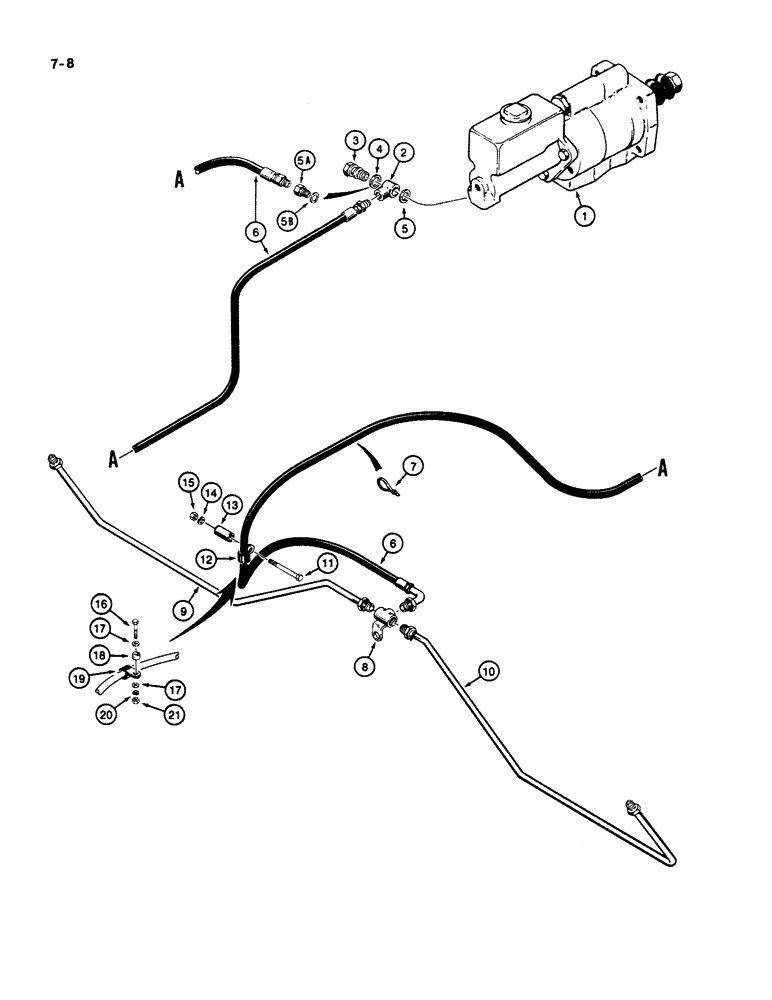

Запчасти Case W11B (7-008) - BRAKE SYSTEM, REAR WHEEL (07) - BRAKES

1

L79630

HYDRAULIC VALVE

ACTUATOR ASSEMBLY - brake, without remote fluid reservoir, models with both front and rear wheel brakes, parts list Figure 7-16

1шт.

1a

L127402

VALVE

ACTUATOR ASSEMBLY - brake, with remote fluid reservoir, models with both front and rear wheel brakes, not shown, parts list Figure 7-16

1шт.

2

A18531

FITTING

- special, Serial Range: -JAK17306

1шт.

3

A12864

BOLT

- hollow, Serial Range: -JAK17306

1шт.

4

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, Serial Range: -JAK17306

1шт.

5

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, Serial Range: -JAK17306

1шт.

5a

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

- inverted flare, male to female, 1/2 inch NF x 7/16 inch NF, Start Serial: JAK17306

1шт.

5b

A12988

GASKET

SEAL - copper, adapter to brake actuator, Start Serial: JAK17306

1шт.

6

L78472

HOSE ASSY.,4.78mm ID x 2591mm L

HOSE - 102" (2591 mm) long

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

L76365

FITTING

TEE - rear brake lines

1шт.

9

L76397

TUBE,0.25" OD

- to left-hand wheel

1шт.

10

L76395

TUBE,0.25" OD

- to right-hand wheel

1шт.

11

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

12

49836

CLAMP

- hose, bolts to chassis frame, uses 3/8 inch diameter hardware, if used

1шт.

13

G49622

SPACER,5/8" Tube x 1 7/16"

- clamp, used with Ref. 12 clamp

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

16

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

17

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - flat, 5/16", plated

2шт.

18

G11271

SPACER

- clamp

1шт.

19

49838

CLAMP

- hose, bolts to starter solenoid mounting bracket, uses 5/16 inch diameter hardware, if used

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.
