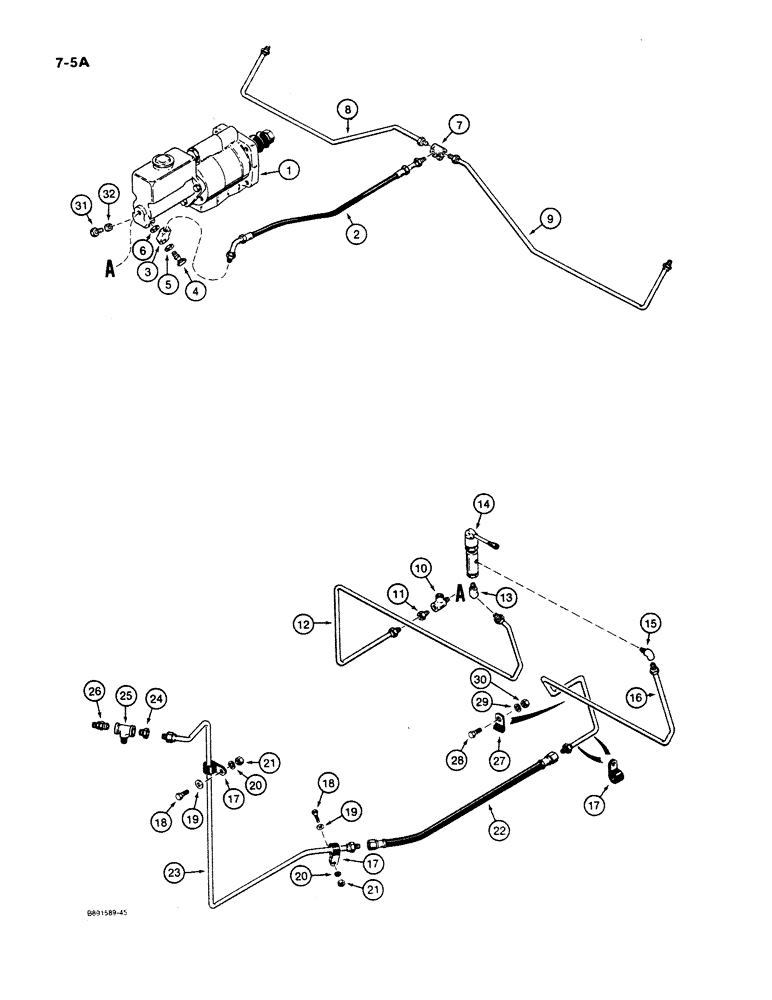

Запчасти Case W11B (7-005A) - BRAKE SYSTEM, FRONT WHEEL AND CLUTCH CUTOUT, MODELS WITHOUT REMOTE BRAKE FLUID RESEVOIR (07) - BRAKES

1

L126954

BRAKE VALVE

ACTUATOR ASSEMBLY - brake, models with front wheel brakes only, parts list Figure 7-14

1шт.

2

L103424

HOSE,4.78mm ID x 711.2mm L

- front brake supply, 30 inch (762 mm) long

1шт.

3

A18531

FITTING

- special, Serial Range: hose-actuator

1шт.

4

A12864

BOLT

- special, brake fitting

1шт.

5

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer

1шт.

6

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner

1шт.

7

L76365

FITTING

TEE - front brake lines

1шт.

8

L76397

TUBE,0.25" OD

- to left-hand wheel

1шт.

9

L76395

TUBE,0.25" OD

- to right-hand wheel

1шт.

10

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- 1/8 inch PT, clutch cutout tube

1шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

ADAPTER - straight

1шт.

12

L79343

TUBE,0.25" OD

- to clutch cutout valve

1шт.

13

222-1031

ELBOW,45 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 45 degree

1шт.

14

L73860

VALVE

ASSEMBLY - clutch cutout, parts list Figure 7-18

1шт.

15

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 90 degree, 7/16 NF inverted flare x 1/8 PT

1шт.

16

L100971

TUBE,0.25" OD

- from clutch cutout valve

1шт.

17

49851

SHIELD

- tube

4шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

L79057

HOSE

- clutch cutout, 20 inch (508 mm) long

1шт.

23

L124019

TUBE,0.25" OD

- to transmission

1шт.

24

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

ADAPTER - straight

1шт.

25

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- 1/8 inch PT

1шт.

26

D46258

PLUG

SCREW - bleeder

1шт.

27

49769

HUB

- tube

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

425-106

NUT,3/8"-16, Cl 5

1шт.

31

S12090

PLUG

- special, brake master cylinder, used when rear brake lines are not installed to master cylinder, see Refs. 1 - 21 on Figure 7-8 for rear brake actuator and lines

1шт.

32

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - plug to master cylinder

1шт.
