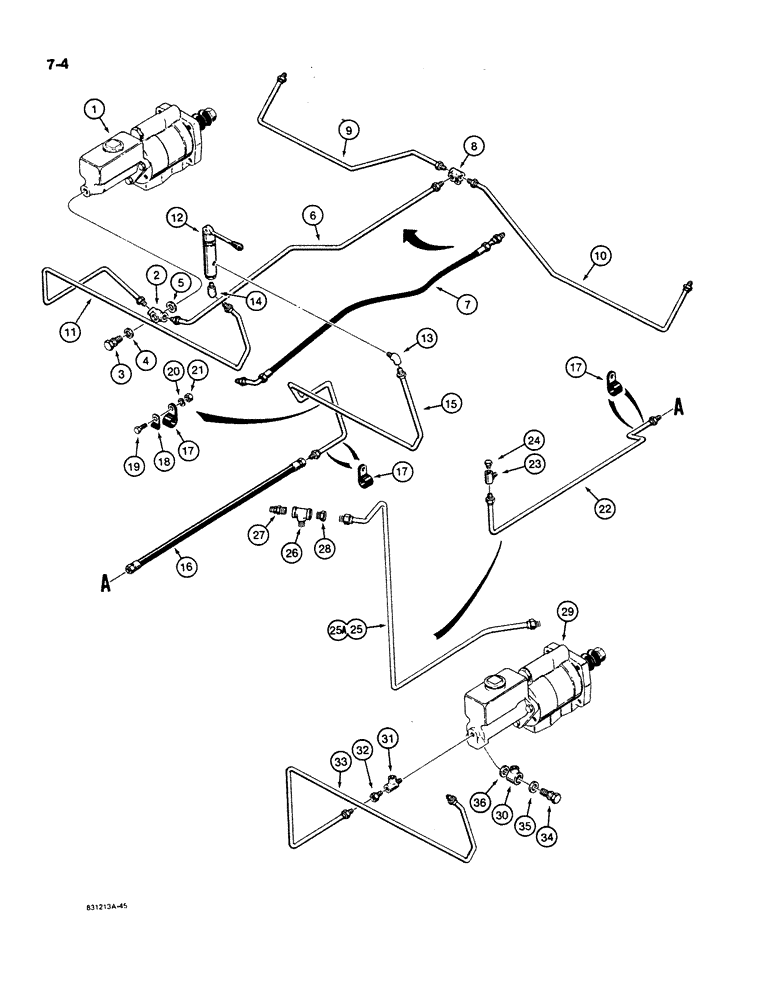

Запчасти Case W11B (7-004) - BRAKE SYSTEM, FRONT WHEEL AND CLUTCH CUTOUT, MODELS WITHOUT REMOTE BRAKE FLUID RESEVOIR (07) - BRAKES

1

L79629

VALVE

ACTUATOR ASSEMBLY - brake, models with front wheel brakes only, parts list Figure 7-12

1шт.

2

A17386

FITTING

TEE - banjo

1шт.

3

A12864

BOLT

- special, brake fitting

1шт.

4

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer

1шт.

5

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - front brake supply, no longer used, order Ref. 7

1шт.

7

L103424

HOSE,4.78mm ID x 711.2mm L

- front brake supply, 30" (762 mm) long

1шт.

8

L76365

FITTING

TEE - front brake lines

1шт.

9

L76397

TUBE,0.25" OD

- to left-hand wheel

1шт.

10

L76395

TUBE,0.25" OD

- to right-hand wheel

1шт.

11

L79024

TUBE,0.25" OD

- not used on models with rear wheel brakes, see Ref. 33

1шт.

12

L73860

VALVE

- clutch cutout, parts list Figure 7-18

1шт.

13

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 90 degree

1шт.

14

222-1031

ELBOW,45 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 45 degree

1шт.

15

L100971

TUBE,0.25" OD

- from clutch cutout valve

1шт.

16

L79057

HOSE

- 20" (508 mm) long

1шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining

5шт.

18

51200321

CLAMP

- tube, top

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

L78939

TUBE,0.25" OD

- to transmission, upon depletion of stock order (1) L123857 tube, Ref. 25, (1) 217-55 fitting, Ref. 26, (1) D46258 screw, Ref. 27, and (1) 222-1012 adapter, Ref. 28

1шт.

23

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

- at transmission, used with L78939 tube

1шт.

24

222-1062

PLUG,7/16"-24, Inv Fl

hex, used with L78939 tube 7/16"-24, Inv Fl

1шт.

25

L123857

TUBE,0.25" OD

- to transmission, used with Funk transmission only

1шт.

25a

L124019

TUBE,0.25" OD

- to transmission, used with Clark transmission only

1шт.

26

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- 1/8 inch PT

1шт.

27

D46258

PLUG

SCREW - bleeder

1шт.

28

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

ADAPTER - straight

1шт.

29

L79630

HYDRAULIC VALVE

ACTUATOR ASSEMBLY - brake, models with front and rear wheel brakes, parts list Figure 7-16

1шт.

30

A18531

FITTING

- special, connects item 6 or 7 to item 29, used on models with front and rear wheel brakes

1шт.

31

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- clutch cutout tube, used on models with front and rear wheel breaks

1шт.

32

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

ADAPTER - straight, used on models with front and rear wheel brakes

1шт.

33

L79343

TUBE,0.25" OD

- to clutch cutout valve, see item 11 for models with, used on models with front and rear wheel breaks front wheel brakes only

1шт.

34

A12864

BOLT

- hollow, used on models with front and rear wheel brakes

1шт.

35

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, used on models with front and rear wheel brakes

1шт.

36

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, used on models with front and rear wheel brakes

1шт.
