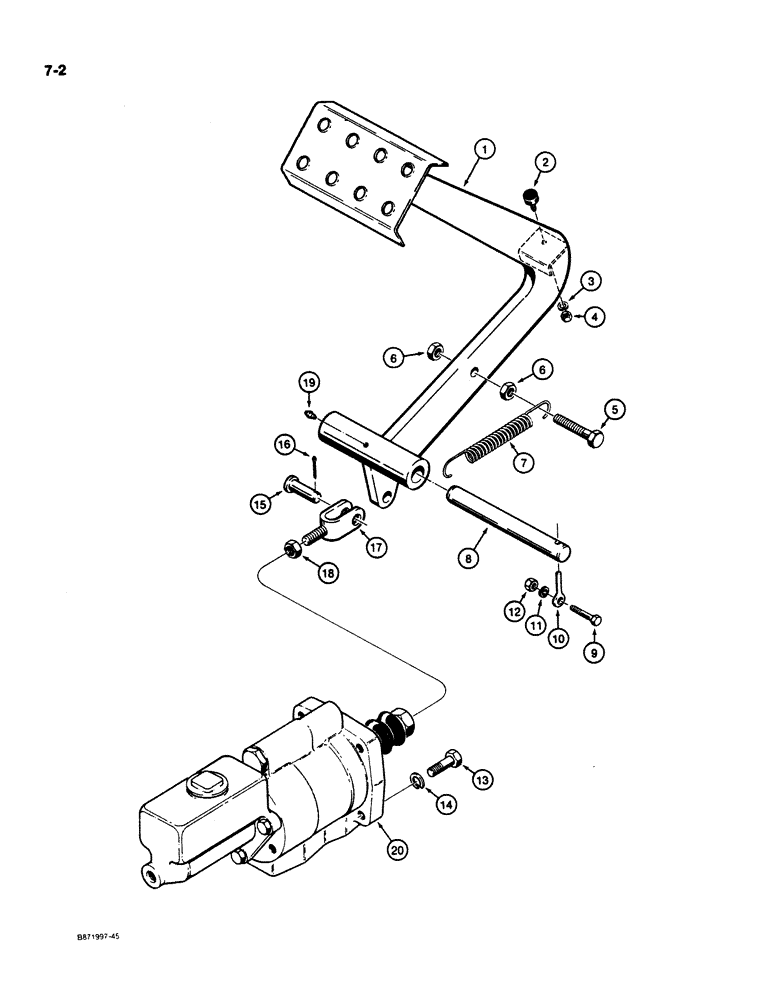

Запчасти Case W11B (7-002) - BRAKE PEDAL AND BRAKE ACTUATOR (07) - BRAKES

1

L78116

PEDAL

- brake

1шт.

2

A150668

SHOCK ABSORBER

BUMPER - pedal

1шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

4

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

5

113-265

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

L79209

SPRING

- pedal

1шт.

8

L76372

PIN,19.05mm OD x 157.48mm L

- pedal pivot

1шт.

9

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

10

213-23

EYE

PIN - lock

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

13

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

15

141-56

CLEVIS PIN,1/2" x 1.360"

- 1/2", plated

1шт.

16

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

17

A56132

FORK

CLEVIS - brake actuator

1шт.

18

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - straight, short, 1/8" NPT

1шт.

20

REF

INSTRUCTION

ACTUATOR ASSEMBLY - brake, models with front wheel brakes only, parts list Figures 7-13 and 7-15

1шт.

20

REF

INSTRUCTION

ACTUATOR ASSEMBLY - brake, models with front and rear wheel brake, parts list Figure 7-17

1шт.
