Запчасти Case W11B (6-082) - DIFFERENTIAL (06) - POWER TRAIN

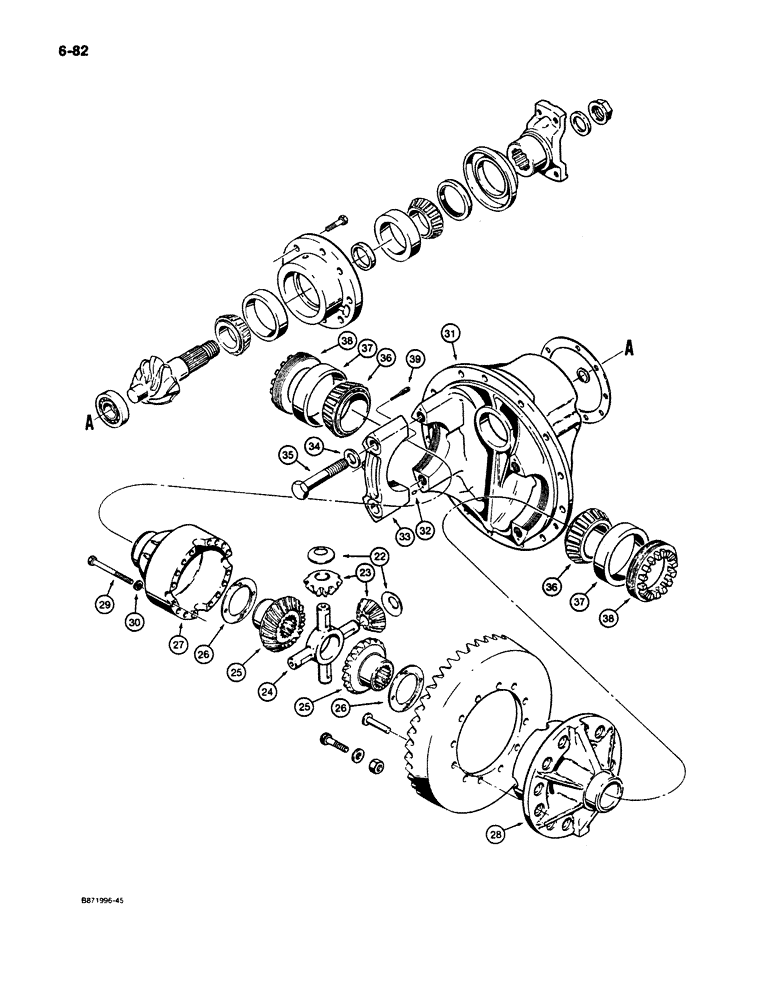

Схема запчастей Case W11B - (6-082) - DIFFERENTIAL (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

22

A25140

WASHER

THRUST WASHER - pinion gear

4шт.

23

A25131

PINION

GEAR - differential

4шт.

24

A25143

SPIDER ASSY.

SPIDER - differential, used with L110131 and L110132 axle assemblies, no longer available, order N8605 spider and N9084 axle shaft

1шт.

24

N8605

SPIDER ASSY.

SPIDER - differential, used with L115301, L115302, L117691, and L117692 axle assemblies

1шт.

25

D82736

GEAR

SIDE GEAR - differential

2шт.

26

A25142

WASHER

THRUST WASHER - side gear

2шт.

S236220

CASE

ASSEMBLY - differential, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

28

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

29

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

- special

16шт.

30

D47366

WASHER

- lock, special

16шт.

D82731

CAP ASSY.

CARRIER AND CAP - differential, Includes: Ref. 31 - 35

1шт.

31

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

32

A15443

DOWEL

PIN - bearing cap

2шт.

33

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

34

A16783

WASHER

- special

4шт.

35

L34037

BOLT

- special

4шт.

36

L33297

ROLLER BEARING

TAPERED ROLLER BEARING - case

2шт.

37

L33303

BEARING CUP

CUP - bearing

2шт.

38

S113916

NUT

- special

2шт.

39

L30029

PIN

COTTER PIN - special

2шт.

Выбрано товаров: 21
