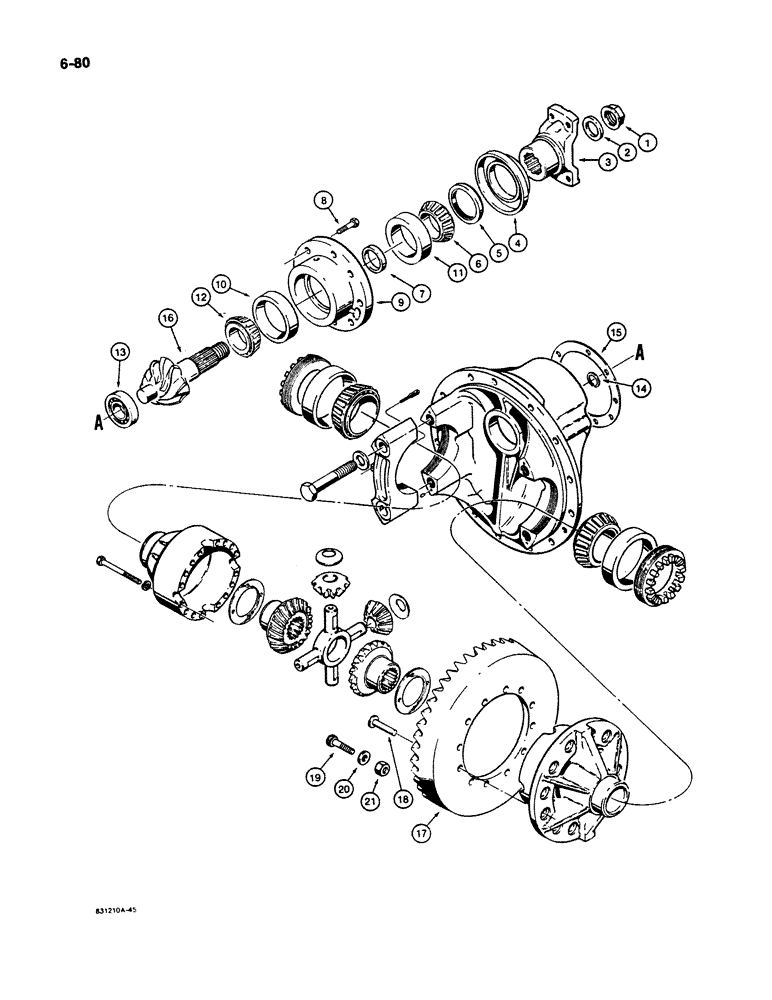

Запчасти Case W11B (6-080) - DIFFERENTIAL (06) - POWER TRAIN

D82730

CARRIER

DIFFERENTIAL ASSEMBLY - axle, used with L110131 and L110132 axle assemblies, no longer available, order N13152 differential and N9084 axle shaft, Includes: Ref. 1 - 39

1шт.

N13152

CARRIER

DIFFERENTIAL ASSEMBLY - axle, used with L115301, L115302, L117691, and L117692 axle assemblies, Includes: Ref. 1 - 39

1шт.

1

S113912

LOCK NUT

- special

1шт.

2

S113914

WASHER

- special

1шт.

N7630

YOKE

ASSEMBLY - axle, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

YOKE - axle

1шт.

4

S113924

SLINGER

SHIELD - seal

1шт.

5

N9921

SEAL

- pinion shaft

1шт.

REF: 5A THIS SEAL REPLACED S113920 SEAL

1шт.

REF. ECS D3085-576.

1шт.

6

S113921

TAPERED BEARING

- pinion shaft

1шт.

7

D82755

SHIM,.234" Thk

(5.943 mm) .234" Thk

1шт.

7

D82756

SHIM,.235" Thk

(5.969 mm) .235" Thk

1шт.

7

D82757

SHIM,.236" Thk

(5.994 mm) .236" Thk

1шт.

7

D82758

SHIM,.237" Thk

(6.019 mm) .237" Thk

1шт.

7

D82759

SHIM,.238" Thk

(6.045 mm) .238" Thk

1шт.

7

D82760

SHIM,.239" Thk

(6.070 mm) .239" Thk

1шт.

7

D82761

SHIM,.240" Thk

(6.096 mm) .240" Thk

1шт.

7

D82762

SHIM,.247" Thk

(6.273 mm) .247" Thk

1шт.

7

D82763

SHIM,.254" Thk

(6.451 mm) .254" Thk

1шт.

7

D82764

SHIM,.261" Thk

(6.629 mm) .261" Thk

1шт.

7

D82765

SEAL

SHIM - .268" (6.807 mm)

1шт.

7

D82766

SHIM,.275" Thk

(6.985 mm) .275" Thk

1шт.

7

D82767

SHIM,.282" Thk

(7.162 mm) .282" Thk

1шт.

7

D82768

SHIM,.289" Thk

(7.340 mm) .289" Thk

1шт.

7

D82769

SHIM,.296" Thk

(7.518 mm) .296" Thk

1шт.

8

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex head, 7/16" - 14 NC x 1-1/2", grade 8

8шт.

N13351

CAGE

ASSEMBLY - bearing cup, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

CAGE - bearing cup

1шт.

10

A138433

BEARING CUP

CUP - bearing

1шт.

11

A9840

BEARING CUP

CUP - bearing

1шт.

12

L30032

ROLLER BEARING

TAPERED ROLLER BEARING - pinion shaft

1шт.

13

D82735

ROLLER BEARING,35mm ID x 72mm OD x 20.64mm W

- pinion shaft

1шт.

14

A15442

LOCK

RING - retaining

1шт.

15

A12958

SHIM,.003" Thk

(.0762 mm) .003" Thk

1шт.

15

A12956

SHIM,.005" Thk

(.1270 mm) .005" Thk

1шт.

15

A12957

SHIM,.010" Thk

(.2540 mm) .010" Thk

1шт.

D82737

GEAR

SET - ring, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

PINION GEAR - differential

1шт.

17

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

18

151-256

RIVET - gear to case, order Refs. 19 - 21 for service

12шт.

19

S113908

BOLT

BOLT -, Serial Range: gear-case

12шт.

20

L30737

WASHER

- special

12шт.

21

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8" - 18 NF

12шт.
