Запчасти Case W11B (6-078) - AXLE HOUSING (06) - POWER TRAIN

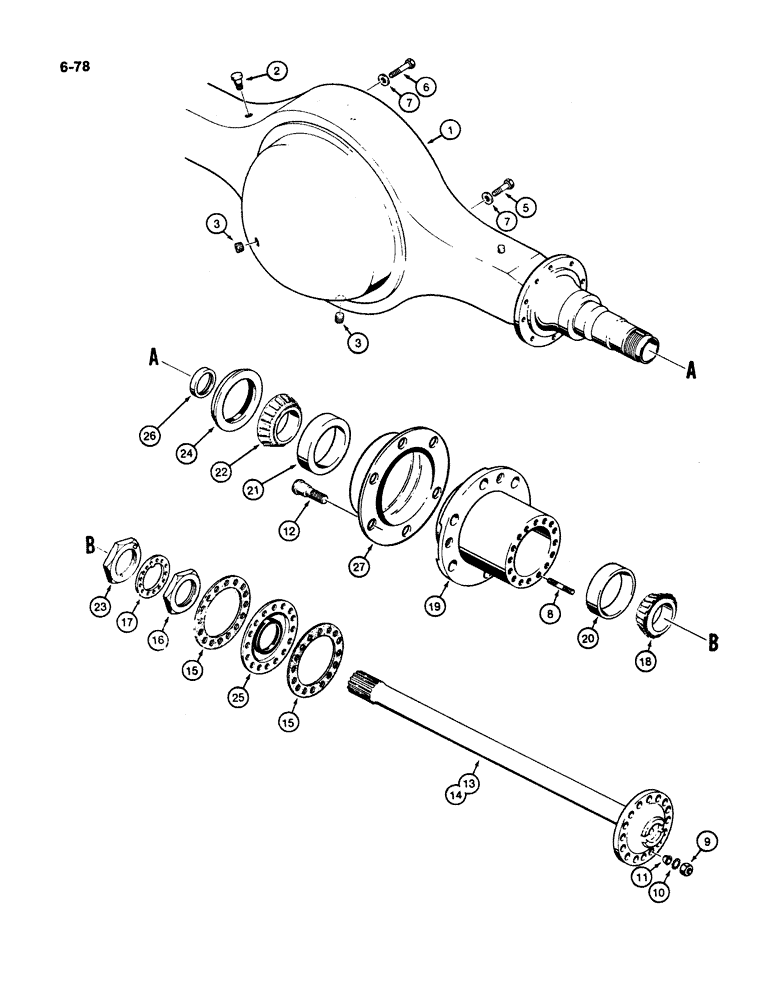

Схема запчастей Case W11B - (6-078) - AXLE HOUSING (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

N8125

HOUSING

- axle

1шт.

2

D57822

BREATHER

- housing

1шт.

3

221-845

PLUG,Hex Soc, 3/4"-14

- square socket, 3/4" NPT

2шт.

4

M20704

ADHESIVE

FORM-IN-PLACE GASKET - tube, 3 oz. (3206 ml), not shown

1шт.

5

26-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

- hex head, 1/2" - 13 NC x 1-3/8", grade 8

10шт.

6

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex head, 1/2" - 13 NC x 2", grade 8

4шт.

7

D47366

WASHER

- hardened

14шт.

8

D82739

STUD

- hub

32шт.

9

129-545

NUT,1/2"-20, G8

32шт.

10

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

32шт.

11

D82753

SLEEVE

- stud

32шт.

12

D82740

STUD

- axle, Serial Range: shaft-hub

12шт.

13

D82751

SHAFT

- axle, 34-5/8" long, used on both sides on L110131 and L110132 axle assemblies, used on right-hand side only on L115301, L115302, and L117691 axle assemblies

1-2шт.

14

N9084

SHAFT

- axle, 32" long, used on left-hand side only on L115301, L115302, and L117692 axle assemblies

1шт.

15

D82752

GASKET

- axle shaft

4шт.

16

D82750

NUT

- outer

2шт.

17

D82749

WASHER

- lock

2шт.

18

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

CONE - bearing

2шт.

D82738

HUB

ASSEMBLY - axle, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

HUB - axle

1шт.

20

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing

1шт.

21

A7892

BEARING, CUP

CUP - inner

1шт.

22

N14208

BEARING CONE

TAPERED ROLLER BEARING - inner

2шт.

23

D82748

NUT

- inner

2шт.

24

D82745

OIL SEAL

- inner

2шт.

25

D82746

OIL SEAL

- outer

2шт.

26

D82747

WIPER

- axle shaft

2шт.

27

D82743

SLINGER

- used on L110131 Axle with brakes only

2шт.

Выбрано товаров: 28
