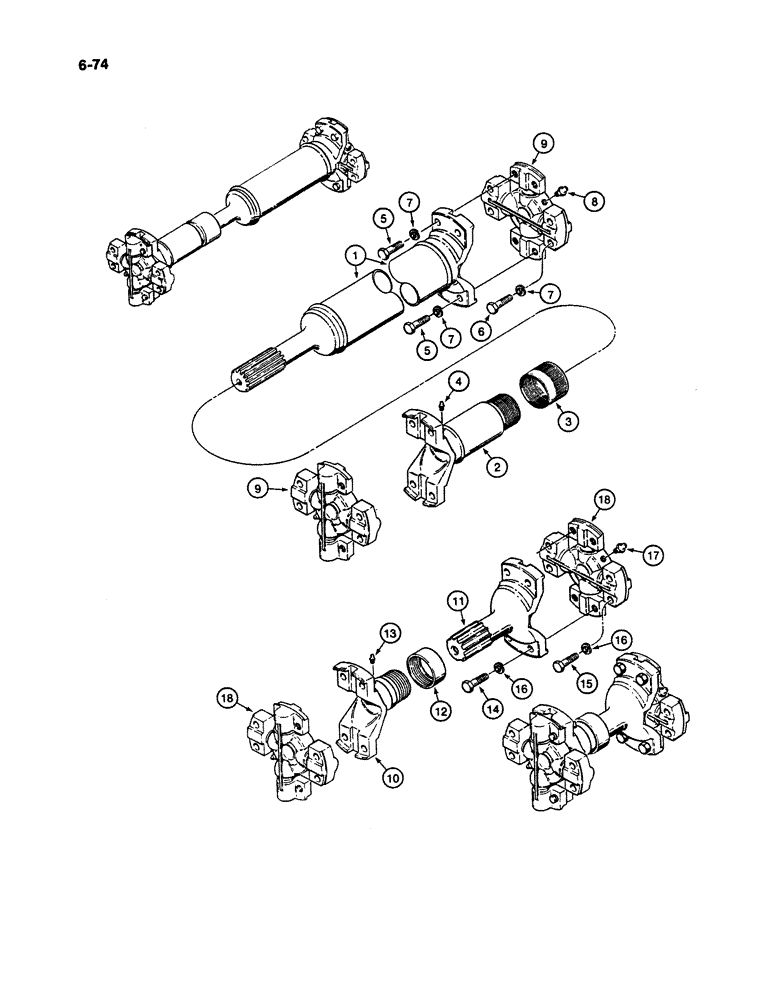

Запчасти Case W11B (6-074) - MIDDLE AND REAR DRIVE SHAFTS, CLARK TRANSMISSION WITH (06) - POWER TRAIN

L123715

SHAFT

DRIVE SHAFT - middle, transmission to front axle drive shaft, Includes: Ref. 1 - 9

1шт.

DRIVE SHAFT U-JOINTS CONTAIN (2) WINGS WITH TAPPED HOLES AND (2) WINGS WITH HOLES

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - external spline

1шт.

2

L31775

YOKE

AND TUBE - internal spline

1шт.

3

L32425

CAP

SEAL - dust

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

N14752

BEARING

KIT - U-joint repair, Includes: Ref. 5 - 9

2шт.

5

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8" - 24 NF x 2", grade 8

4шт.

6

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

7

192-61

LOCK WASHER,3/8"

3/8"

8шт.

N8198

BEARING

KIT - U-joint, drive shaft, Includes: Ref. 8 and 9

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

9

NSS

NOT SOLD SEPARAT

U-JOINT, drive shaft

1шт.

L123713

SHAFT

DRIVE SHAFT - rear, transmission to rear axle, Includes: Ref. 10 - 18

1шт.

10

N14750

YOKE

AND TUBE - internal spline, rear drive shaft

1шт.

11

N14751

YOKE

AND TUBE - external spline, rear drive shaft

1шт.

12

N8200

PROTECTIVE COVER

SEAL - dust, rear drive shaft

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, rear drive shaft

1шт.

N14747

KIT

- U-joint repair, rear drive shaft, Includes: Ref. 14 - 18

2шт.

14

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8" - 24 NF x 2", grade 8, rear drive shaft

4шт.

15

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

rear drive shaft Hex, 3/8"-24 x 1", G8, Full Thd

4шт.

16

192-61

LOCK WASHER,3/8"

rear drive shaft 3/8"

8шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, rear drive shaft

1шт.

18

NSS

NOT SOLD SEPARAT

U-JOINT, drive shaft, rear

1шт.
