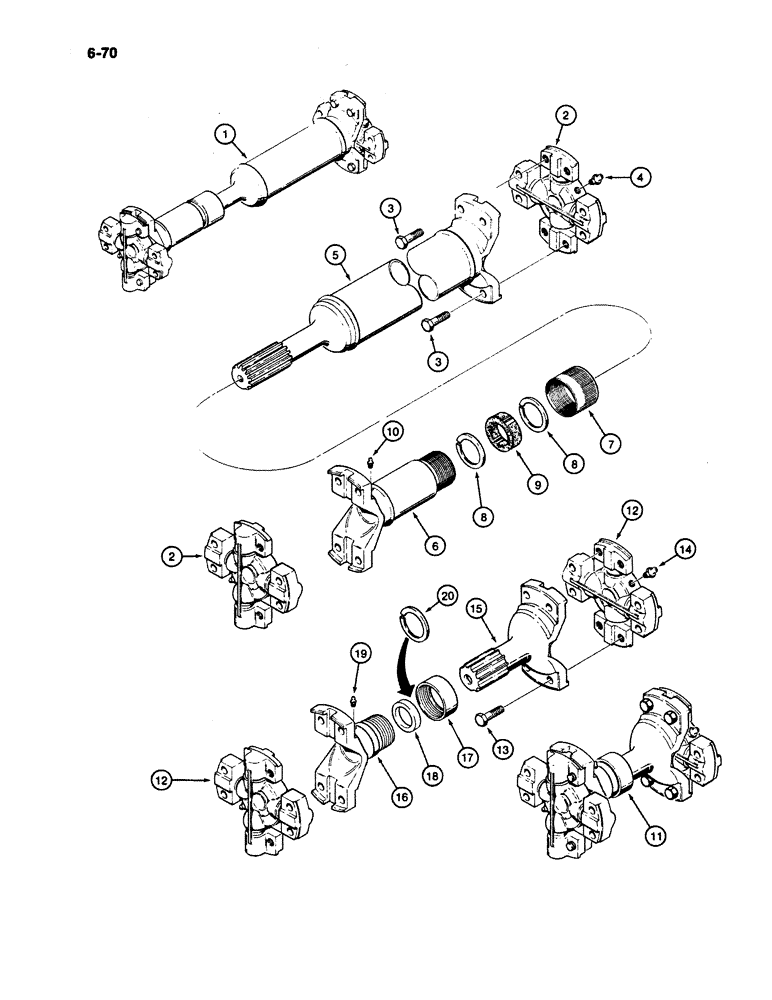

Запчасти Case W11B (6-070) - MIDDLE AND REAR DRIVE SHAFTS, FUNK TRANSMISSION WITH (06) - POWER TRAIN

1

L74588

SHAFT

DRIVE SHAFT - middle, transmission to front axle drive shaft, Includes: Ref. 2 - 10

1шт.

L36151

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

REF: 2A CONTAINS 8 THRU UN-THREADED HOLES

1шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, spider

8шт.

4

219-417

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

5

D80541

TUBE,3" DIA x 20.375" L

YOKE AND TUBE - external spline

1шт.

D73676

YOKE

AND TUBE ASSEMBLY - internal spline, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - internal spline

1шт.

7

A19923

CAP

- dust

1шт.

8

D73712

WASHER

- backup

2шт.

9

D73711

FELT SEAL

- felt

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

11

L77277

SHAFT

DRIVE SHAFT - rear, transmission to rear axle, rear drive shaft, Includes: Ref. 12 - 20

1шт.

L36151

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, rear, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, rear

1шт.

REF: 12A CONTAINS 8 THRU UN-THREADED HOLES

1шт.

13

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, spider, rear drive shaft

8шт.

14

219-417

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper, rear drive shaft

1шт.

15

D80543

YOKE

AND TUBE - external spline, rear drive shaft

1шт.

N6747

FORK

YOKE AND TUBE ASSEMBLY - internal spline, rear drive shaft, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - internal spline, rear drive shaft

1шт.

17

D80545

CAP

- dust, rear drive shaft

1шт.

18

D80546

FELT SEAL

- felt, rear drive shaft

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, rear drive shaft

1шт.

20

D73712

WASHER

- backup, if used, rear drive shaft

1шт.
