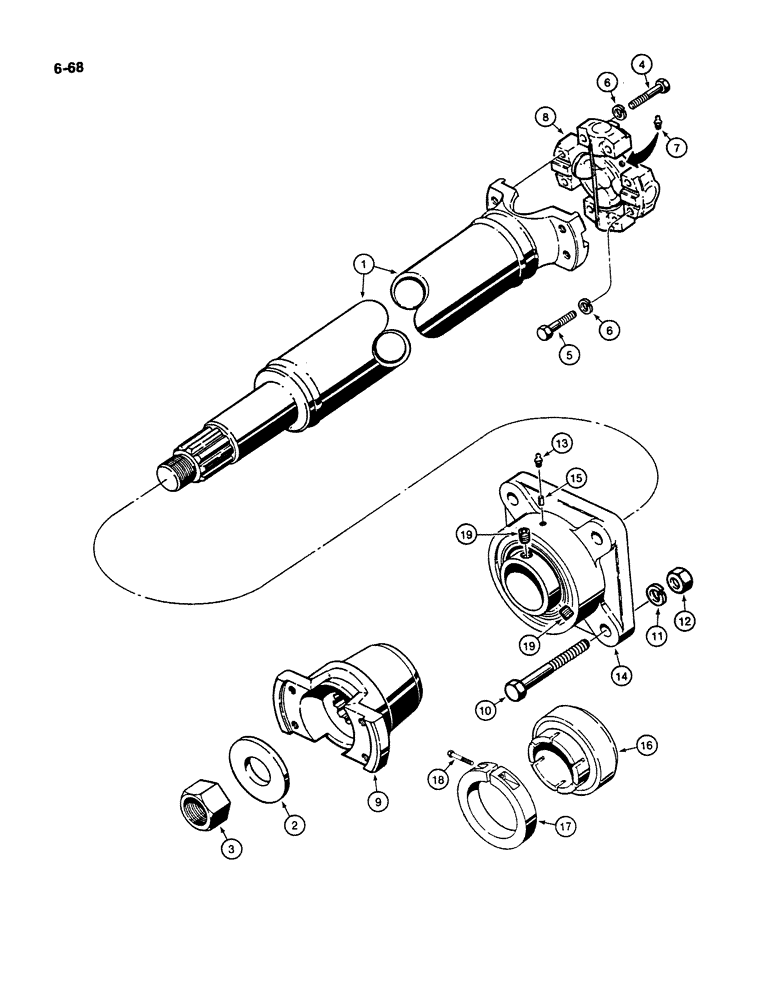

Запчасти Case W11B (6-068) - FRONT AXLE DRIVE SHAFT AND BEARING, CLARK TRANSMISSION WITH (06) - POWER TRAIN

L123717

SHAFT

DRIVE - front, to axle, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE AND TUBE ASSEMBLY - drive shaft, axle end

1шт.

2

D28266

WASHER

Special

1шт.

3

N9217

FLANGE NUT

Hex, special

1шт.

N14752

BEARING

KIT - U-joint repair, Includes: Ref. 4 - 8

1шт.

4

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

4шт.

5

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

6

192-61

LOCK WASHER,3/8"

8шт.

N8198

BEARING

KIT - U-joint, drive shaft, Includes: Ref. 7 and 8

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

NSS

NOT SOLD SEPARAT

U-JOINT, drive shaft

1шт.

9

L123714

FLANGE

YOKE - drive shaft

1шт.

10

113-516

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

4шт.

11

192-24

LOCK WASHER,9/16"

4шт.

12

129-106

NUT,9/16"-12, G5

4шт.

L106070

FLANGED BEARING

SUPPORT ASSEMBLY - front drive shaft, uses set screws, Includes: Ref. 13 - 19

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - bearing, may have holes for set screws instead

1шт.

of slots

1шт.

15

L33788

AXLE PIN

Lock

1шт.

L33787

KIT

Repair, bearing and collar, converts from set screws to collar arrangement, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING AND SEAL - center bearing

1шт.

17

L33789

COLLAR

Bearing, if used

1шт.

18

61-416

HEX SOC SCREW,1/4"-20 x 1"

If used

1шт.

19

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

2шт.
