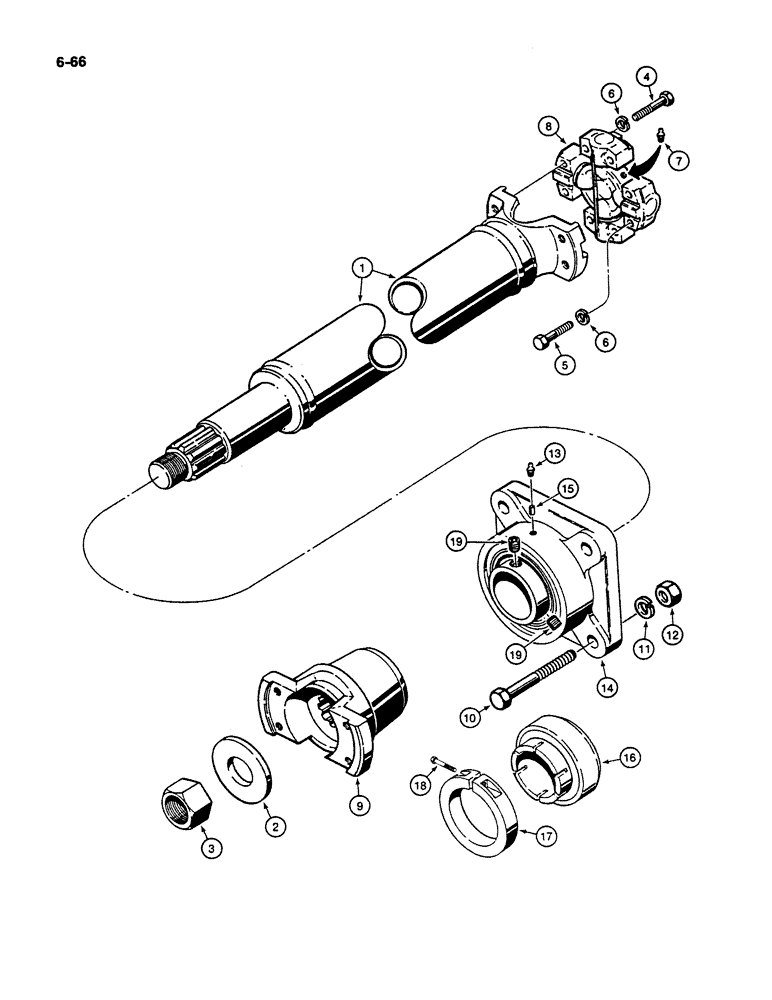

Запчасти Case W11B (6-066) - FRONT AXLE DRIVE SHAFT AND BEARING, FUNK TRANSMISSION WITH (06) - POWER TRAIN

L123718

SHAFT

DRIVE - front, to axle, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE AND TUBE ASSEMBLY - drive shaft, axle end

1шт.

2

D28266

WASHER

Special

1шт.

3

N9217

FLANGE NUT

Hex, special

1шт.

N14752

BEARING

KIT - repair, U-joint, drive shaft, axle end, Includes: Ref. 4 - 8

1шт.

4

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

4шт.

5

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

6

192-61

LOCK WASHER,3/8"

8шт.

N8198

BEARING

KIT - U-joint, drive shaft, Includes: Ref. 7 and 8

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

NSS

NOT SOLD SEPARAT

U-JOINT, drive shaft

1шт.

9

L123714

FLANGE

YOKE - drive shaft

1шт.

10

113-516

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

4шт.

11

192-24

LOCK WASHER,9/16"

4шт.

12

129-106

NUT,9/16"-12, G5

4шт.

L106070

FLANGED BEARING

SUPPORT ASSEMBLY - front drive shaft, uses set screws, Includes: Ref. 13 - 19

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - bearing, may have holes for set screws instead of slots

1шт.

15

L33788

AXLE PIN

Lock

1шт.

L33787

KIT

Repair, bearing and collar, converts from set screws to collar arrangement, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING AND SEAL - center bearing

1шт.

17

L33789

COLLAR

Bearing, if used

1шт.

18

61-416

HEX SOC SCREW,1/4"-20 x 1"

If used

1шт.

19

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

2шт.
