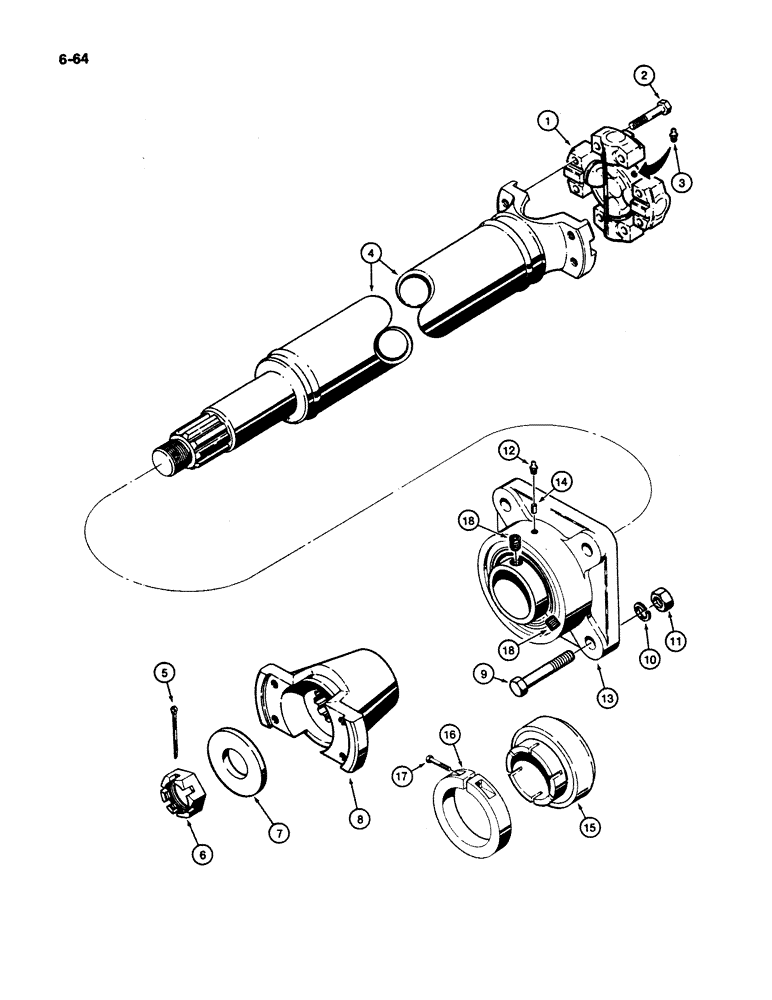

Запчасти Case W11B (6-064) - FRONT AXLE DRIVE SHAFT AND BEARING, FUNK TRANSMISSION WITH (06) - POWER TRAIN

L77276

SHAFT

DRIVE - front, to axle, Includes: Ref. 1 - 4

1шт.

L36151

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

2

A17298

BOLT,Hex, 3/8" x 1 11/16"

Spider

8шт.

3

219-417

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

D80542

TUBE

Drive shaft

1шт.

5

132-338

COTTER PIN,1/8" x 2 1/2"

1шт.

6

L33629

SPECIAL NUT

Hex slotted, special

1шт.

7

D28266

WASHER

Special

1шт.

8

L74590

FORK

YOKE - drive shaft

1шт.

9

113-516

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

4шт.

10

192-24

LOCK WASHER,9/16"

4шт.

11

129-106

NUT,9/16"-12, G5

4шт.

L106070

FLANGED BEARING

SUPPORT ASSEMBLY - front drive shaft, uses set screws, Includes: Ref. 12 - 18

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing, may have holes for set screws instead of slots

1шт.

14

L33788

AXLE PIN

Lock

1шт.

L33787

KIT

Repair, bearing and collar, converts from set screws to collar arrangement, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING AND SEAL - center bearing

1шт.

16

L33789

COLLAR

Bearing, if used

1шт.

17

61-416

HEX SOC SCREW,1/4"-20 x 1"

If used

1шт.

18

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

2шт.
