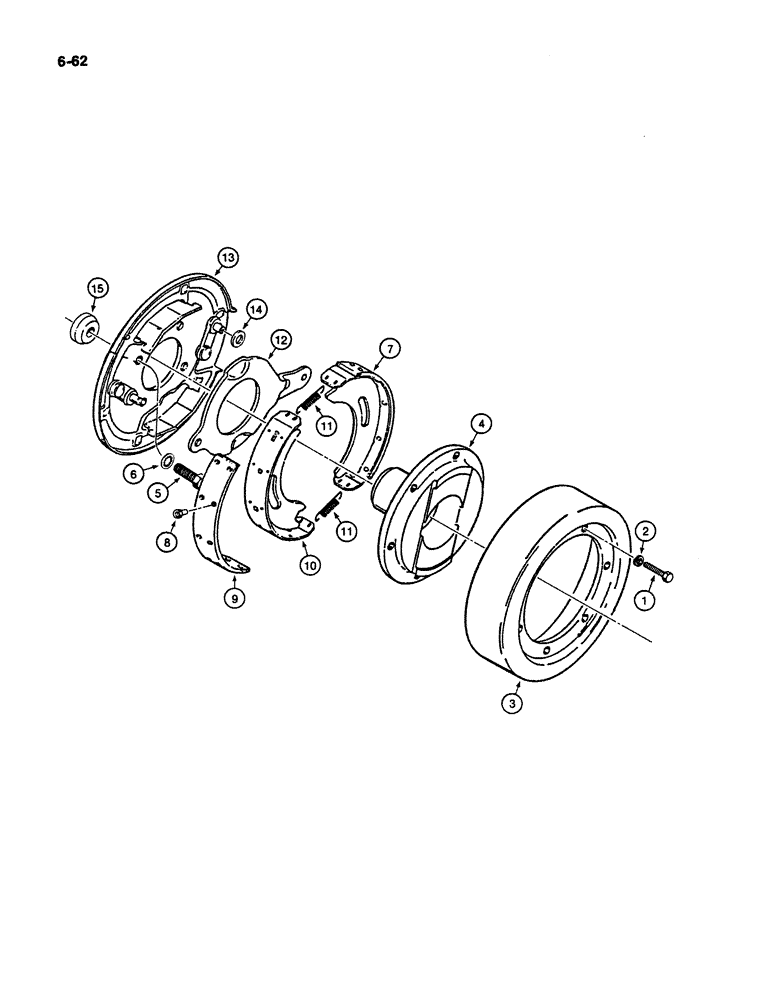

Запчасти Case W11B (6-062) - CLARK TRANSMISSION, PARKING BRAKE (06) - POWER TRAIN

L117957

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft bolted to converter housing, no longer available, order L126647 when replacing complete transmission, Includes: Ref. 1 - 15

1шт.

L126647

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft pressed into converter housing, Includes: Ref. 1 - 15

1шт.

1

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

6шт.

2

492-11038

LOCK WASHER,3/8"

6шт.

3

A17982

DRUM

Parking brake

1шт.

4

L33536

FLANGE

Output

1шт.

5

113-508

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5, Full Thd

Hex, 9/16" - 12 NC x 1"

4шт.

6

193-95

LOCK WASHER,Ext Tooth, 5/16"

4шт.

L33577

BRAKE

ASSEMBLY - parking, Includes: Ref. 7 - 14

1шт.

7

A18133

BRAKE SHOE

SHOE, BRAKE AND LINING ASSEMBLY - parking brake, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

RIVET -, Serial Range: lining-shoe

10шт.

9

NSS

NOT SOLD SEPARAT

LINING - brake shoe

1шт.

10

NSS

NOT SOLD SEPARAT

SHOE - parking brake

1шт.

11

N8445

SPRING

Shoe return

2шт.

12

D60994

LEVER

Parking brake actuating

1шт.

13

L33578

PLATE ASSY.

BACKING - parking brake

1шт.

14

L33579

ROLLER

Lever

1шт.

15

N14400

SPACER

Backing plate

4шт.

A18136

KIT

Lining and rivet, includes two linings and 20 rivets to service the entire parking brake

1шт.
