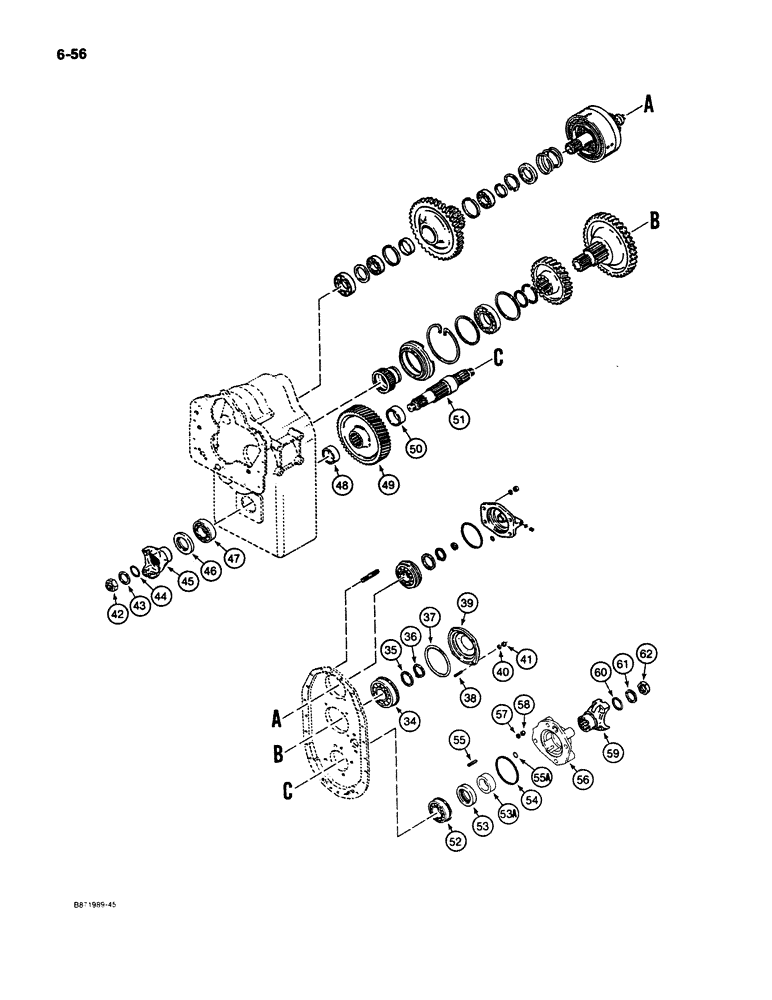

Запчасти Case W11B (6-056) - CLARK TRANSMISSION, OUTPUT SHAFT, IDLER SHAFT, AND LOW GEARS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
L117957
TRANSMISSION
ASSEMBLY - forward and reverse, with reverse idler shaft bolted to converter housing, no longer available, order L126647 when replacing complete transmission, Includes: Ref. 34 - 62 and Ref. 1 - 33B on Figure 6-54
1шт.
L126647
TRANSMISSION
ASSEMBLY - forward and reverse, with reverse idler shaft pressed into converter housing, Includes: Ref. 34 - 62 and Ref. 1 - 33B on Figure 6-54
1шт.
34
E114369
BEARING
- idler shaft
1шт.
35
E114368
WASHER, THRUST
WASHER - special, bearing support
1шт.
36
E114367
CLIP
RETAINING RING - rear bearing, idler shaft
1шт.
37
A27384
O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro
- rear bearing cap
1шт.
38
N7209
BEARING CAP
STUD - bearing cap
4шт.
39
E114365
BEARING CAP
CAP - idler shaft bearing
1шт.
40
192-22
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
41
425-117
NUT,7/16"-20, G5
- hex, 7/16 inch NF
4шт.
42
131-487
LOCK NUT,1 1/4"-18
NUT - flange
1шт.
43
A55828
WASHER
- flange
1шт.
44
A30916
O-RING,1.475" ID x 1.875" OD x 0.21"
- flange
1шт.
45
E105010
CLAMP
FLANGE - output, front
1шт.
46
D77023
SEAL
- oil, output shaft
1шт.
47
E114340
BALL BEARING
BEARING - output shaft, front
1шт.
48
N14395
SPACER
- output gear
1шт.
49
N14394
GEAR
- output shaft
1шт.
50
NLS
NO LONGER SERVICED
- output gear
1шт.
51
N14396
SHAFT
- output
1шт.
52
D87243
BALL BEARING
- output shaft, rear
1шт.
53
D87228
OIL SEAL
- rear bearing
1шт.
53a
S118044
SPACER
-, Serial Range: bearing-flange
1шт.
54
A27817
O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro
- rear bearing cap
4шт.
55
N7210
STUD
- output bearing cap,rear
1шт.
55a
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
- 11/16 x 7/8 inch
1шт.
56
E114376
CYLINDER END CAP
CAP - output shaft rear bearing
1шт.
57
192-24
LOCK WASHER,9/16"
WASHER, LOCK, 9/16"
4шт.
58
129-126
NUT,9/16"-18, G8
- special, bearing cap stud
4шт.
59
L33536
FLANGE
- output, rear
1шт.
60
A30916
O-RING,1.475" ID x 1.875" OD x 0.21"
- flange
1шт.
61
A55828
WASHER
- flange
1шт.
62
131-487
LOCK NUT,1 1/4"-18
NUT - flange
1шт.
Выбрано товаров: 33
