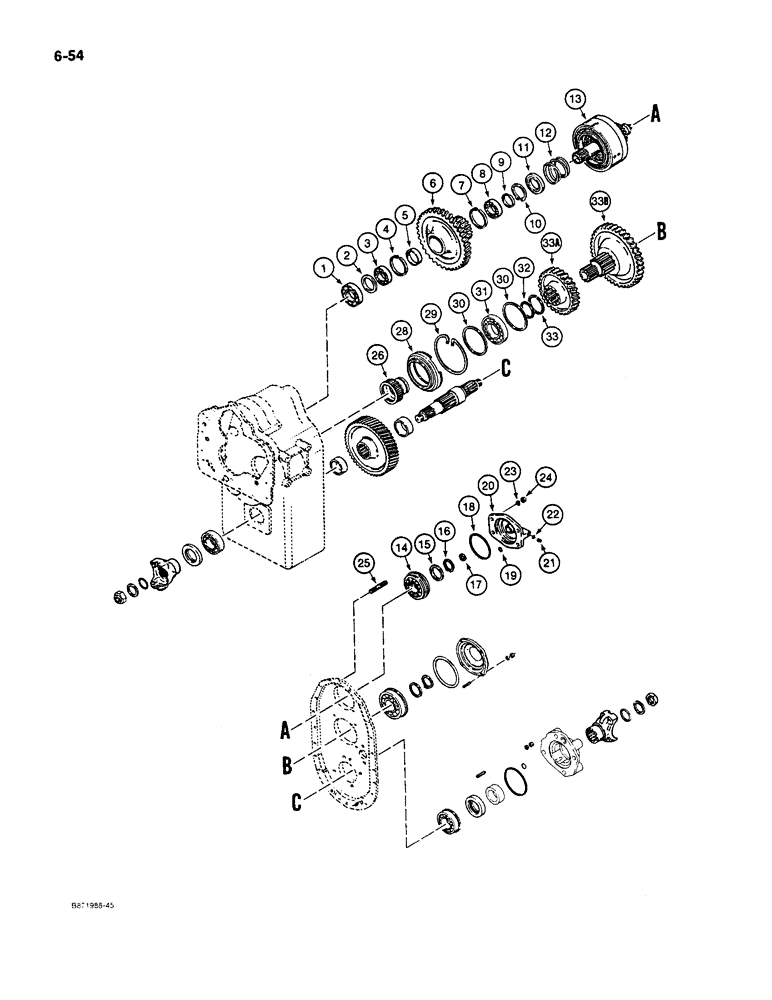

Запчасти Case W11B (6-054) - CLARK TRANSMISSION, OUTPUT SHAFT, IDLER SHAFT, AND LOW GEARS (06) - POWER TRAIN

L117957

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft bolted to converter housing, no longer available, order L126647 when replacing complete transmission, Includes: Ref. 1 - 33B and Ref. 34 - 62 on Figure 6-56

1шт.

L126647

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft pressed into converter housing, Includes: Ref. 1 - 33B and Ref. 34 - 62 on Figure 6-56

1шт.

1

E114340

BALL BEARING

BEARING - front, low speed clutch shaft

1шт.

2

E114341

SPACER

- front bearing

1шт.

3

S89657

BEARING

- gear, low speed

1шт.

4

S89658

RING

- bearing retaining

1шт.

5

N7213

SPACER

- low speed gear

1шт.

6

N13326

CYLINDER END CAP

HUB - low gear, Includes: Ref. 6A

1шт.

6a

N13129

RING

- oil retaining, reverse clutch gear, not shown

1шт.

7

S89658

RING

- bearing retaining

1шт.

8

S89657

BEARING

- low speed gear

1шт.

9

E114334

CLIP

RETAINING RING - bearing

1шт.

10

E114328

RING, SNAP

SNAP RING - spring retainer

1шт.

11

E114332

RETAINER

- spring

1шт.

12

E114331

SPRING

- piston return

1шт.

13

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, parts list Figure 6-44

1шт.

14

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - rear, low speed shaft

1шт.

15

E114268

BEARING WASHER

WASHER - rear bearing support

1шт.

16

E114334

CLIP

RETAINING RING - rear bearing

1шт.

17

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

- bearing retaining

1шт.

18

N8134

O-RING

- rear bearing cap, large

1шт.

19

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- bearing cap, rear, small

1шт.

20

N13147

CAP

HOUSING - rear bearing

1шт.

21

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 22 Hex Hd, 3/8"-24 ORB

1шт.

22

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

23

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

24

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

4шт.

25

N7209

BEARING CAP

STUD - bearing cap

4шт.

26

N8832

HUB

RETAINING RING - clutch disc hub

1шт.

27

N13129

RING

- oil retaining, reverse clutch gear, not shown

1шт.

28

E114350

BEARING CARRIER

CARRIER - bearing

1шт.

29

E114349

RING, SNAP

SNAP RING - bearing carrier

1шт.

30

E114346

O-RING

RING - bearing locating

2шт.

31

E114347

BEARING

- third clutch disc hub

1шт.

32

E114345

RING

RETAINING RING - bearing

1шт.

33

A55775

OIL SEAL

SNAP RING - idler gear

1шт.

33a

N14392

GEAR

- idler shaft

1шт.

33b

N14393

SHAFT

- idler

1шт.
