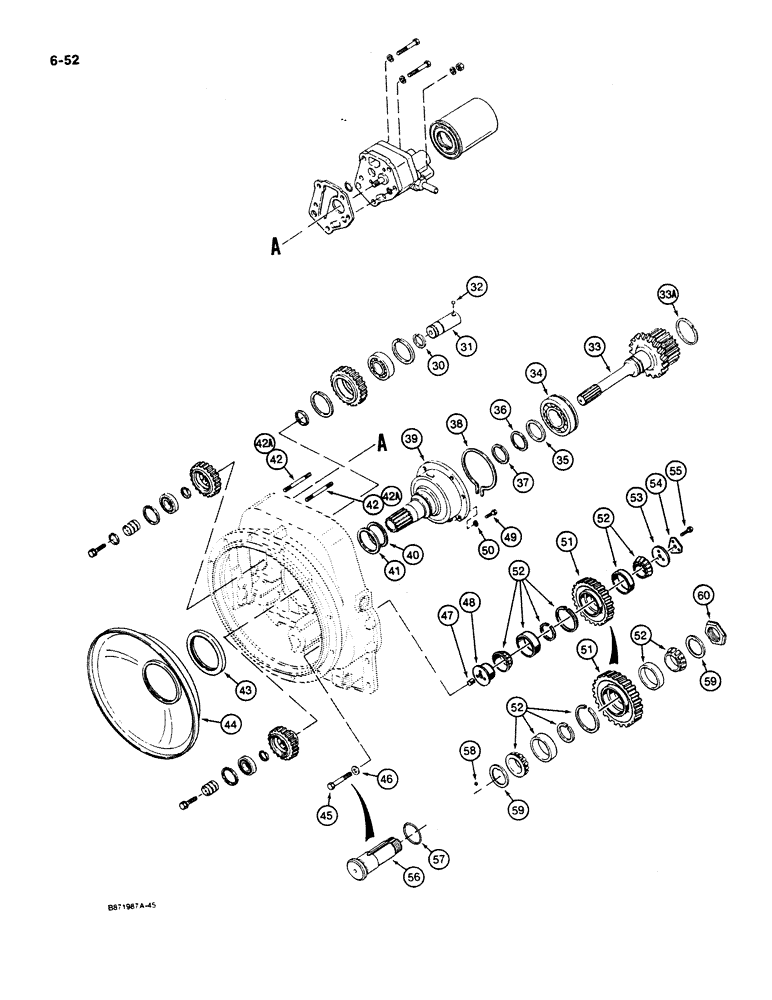

Запчасти Case W11B (6-052) - CLARK TRANSMISSION, CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

L117957

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft bolted to converter housing, no longer available, order L126647 when replacing complete transmission, Includes: Ref. 30 - 60 and Ref. 1 - 29 on Figure 6-50

1шт.

L126647

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft pressed into converter housing, Includes: Ref. 30 - 60 and Ref. 1 - 29 on Figure 6-50

1шт.

30

E114258

RING

bearing locating

1шт.

31

E114264

SHAFT

- idler gear stub

1шт.

32

211-206

BALL,1/4" Dia

- chrome, 1/4 inch diameter

1шт.

33

N7150

SHAFT

- turbine and hub, Includes: Ref. 33A

1шт.

33a

N13129

RING

- oil retaining, turbine and hub shaft

1шт.

The oil retaining ring is an integral part of the gear and it is recommended that the ring not be removed.

1шт.

34

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

BEARING - turbine shaft

1шт.

35

E114268

BEARING WASHER

WASHER - bearing locating

1шт.

36

E104161

RING

- bearing retaining

1шт.

37

A17901

SEAL

RING - piston

1шт.

38

E114266

RING

SNAP RING - bearing

1шт.

39

N13324

SUPPORT

- stator

1шт.

40

D87245

RING

SPRING - piston ring expander

1шт.

41

D87244

RING,Locking, 67.31mm ID x 72.14mm OD x 3.05mm Thk

- piston

1шт.

42

N7153

STUD

- pump mounting, 5.375 inches (137 mm) long

1шт.

42a

N6819

STUD

- pump mounting, 4.875 inches (124 mm) long

1шт.

43

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

OIL SEAL - baffle

1шт.

44

E114272

BAFFLE

- housing

1шт.

45

28-744

BOLT,Hex, 7/16" - 20 x 2-3/4", Gr 8

- hex head, 7/16" - 20 NF x 2-3/4", grade 8, used with Refs. 47 and 48 only

1шт.

46

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Used with Refs. 47 and 48 only 7/16"

3шт.

47

E114275

PIN

- shaft, reverse idler, if used, see Refs. 56 - 59

1шт.

48

N7154

SHAFT

- reverse idler, if used, see Refs. 56 - 59

1шт.

49

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

50

492-11038

LOCK WASHER,3/8"

6шт.

51

N7155

GEAR

- reverse idler

1шт.

52

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

BEARING ASSEMBLY - reverse idler gear, matched parts

1шт.

53

E114278

PLATE

- reverse idler gear retaining, if used, see Refs. 59 and 60

1шт.

54

E114279

PLATE ASSY.

PLATE - lock, if used, see Refs. 59 and 60

1шт.

55

28-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

- hex head, 7/16" - 20 NF x 1", grade 8, used with Refs. 53 and 54

1шт.

56

D142275

SHAFT

- reverse idler, if used

1шт.

57

D27878

O-RING,1.609" ID x 1.887" OD

- idler shaft, if used

1шт.

58

211-208

BALL,5/16" Dia

- 5/16", grade 25, chrome alloy steel, if used

1шт.

59

D142277

PLATE ASSY.

PLATE - thrust, if used

2шт.

60

D142278

BEARING LOCK NUT

special, reverse idler gear retaining, used with Ref. 56 idler shaft

1шт.
