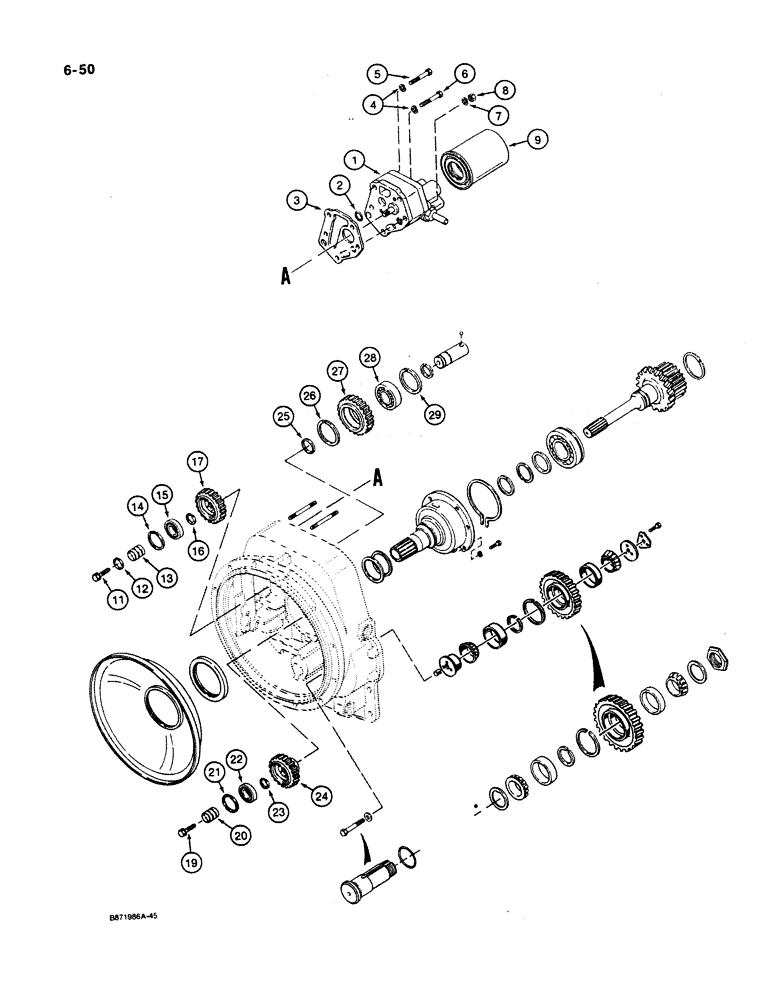

Запчасти Case W11B (6-050) - CLARK TRANSMISSION, CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

L117957

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft bolted to converter housing, no longer available, order L126647 when replacing complete transmission, Includes: Ref. 1 - 29 and Ref. 30 - 60 on Figure 6-52

1шт.

L126647

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft pressed into converter housing, Includes: Ref. 1 - 29 and Ref. 30 - 60 on Figure 6-52

1шт.

1

D87252

PUMP

CHARGING PUMP - transmission

1шт.

REF: 1A S301656 SHIM AND GASKET REPAIR KIT PER ECS # S9004-77.

1шт.

2

E114251

O-RING

- charging pump

1шт.

3

E114250

GASKET

- charging pump to converter housing

1шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

5

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

6

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

2шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

9

D87214

FILTER

- charging pump

1шт.

11

E114257

BOLT

AND WASHER - bearing support

2шт.

12

E114258

RING

- bearing locating

1шт.

13

E114259

SUPPORT

- pump drive bearing

1шт.

14

L30725

RING

- bearing retaining

1шт.

15

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- pump drive gear

1шт.

16

E114258

RING

- bearing locating

1шт.

17

E114260

GEAR WHEEL

GEAR - pump drive

1шт.

19

E114257

BOLT

AND WASHER - bearing support

2шт.

20

E114259

SUPPORT

- auxiliary pump drive bearing

1шт.

21

E114261

RING

- bearing retaining

1шт.

22

E114263

BEARING

- pump drive gear

1шт.

23

E114258

RING

- bearing locating

1шт.

24

E114305

GEAR

- auxiliary pump drive

1шт.

25

E114258

RING

- bearing locating, idler gear, small

1шт.

26

E114261

RING

- bearing locating, idler gear, large

1шт.

27

E114262

GEAR WHEEL

GEAR - pump drive idler

1шт.

28

E114263

BEARING

- idler stub shaft

1шт.

29

E114261

RING

- bearing retaining

1шт.
