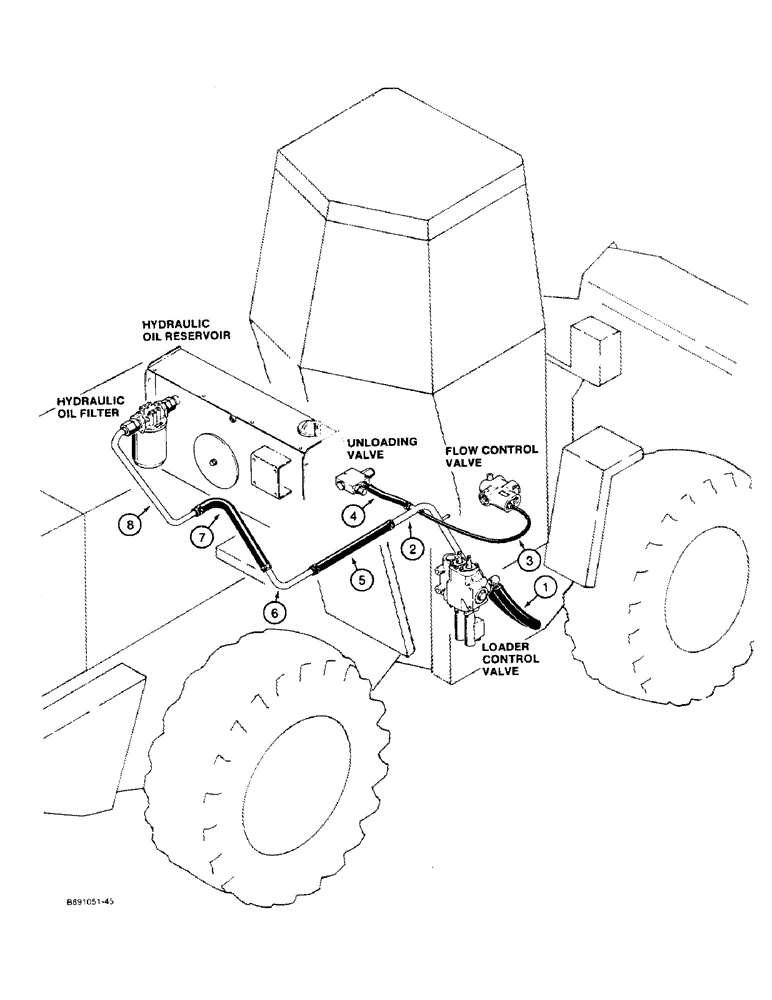

Запчасти Case W11B (1-014) - PICTORIAL INDEX, RETURN LINES HYDRAULIC CIRCUIT, USED ON MODELS W/ FUNK TRANSMISSION (00) - PICTORIAL INDEX

1

Hose from loader control valve to manifold return tube, Page 8-7

1шт.

2

Tube from return lines to hydraulic reservoir, Page 8-7

1шт.

3

Hose from flow control valve to manifold tube, Page 8-9

1шт.

4

Hose from unloading valve to manifold tube, Page 8-9

1шт.

5

Hose from manifold tube to lower return tube to reservoir, Page 8-7

1шт.

6

Tube from lower connecting hose to upper connecting hose, Page 8-7

1шт.

7

Hose from lower return tube to upper return tube, Page 8-7

1шт.

8

Hose from upper connecting hose to hydraulic oil filter at reservoir, Page 8-7

1шт.
