Запчасти Case W11B (6-042) - CLARK TRANSMISSION, IMPELLER, TURBINE, AND FLEXPLATE (06) - POWER TRAIN

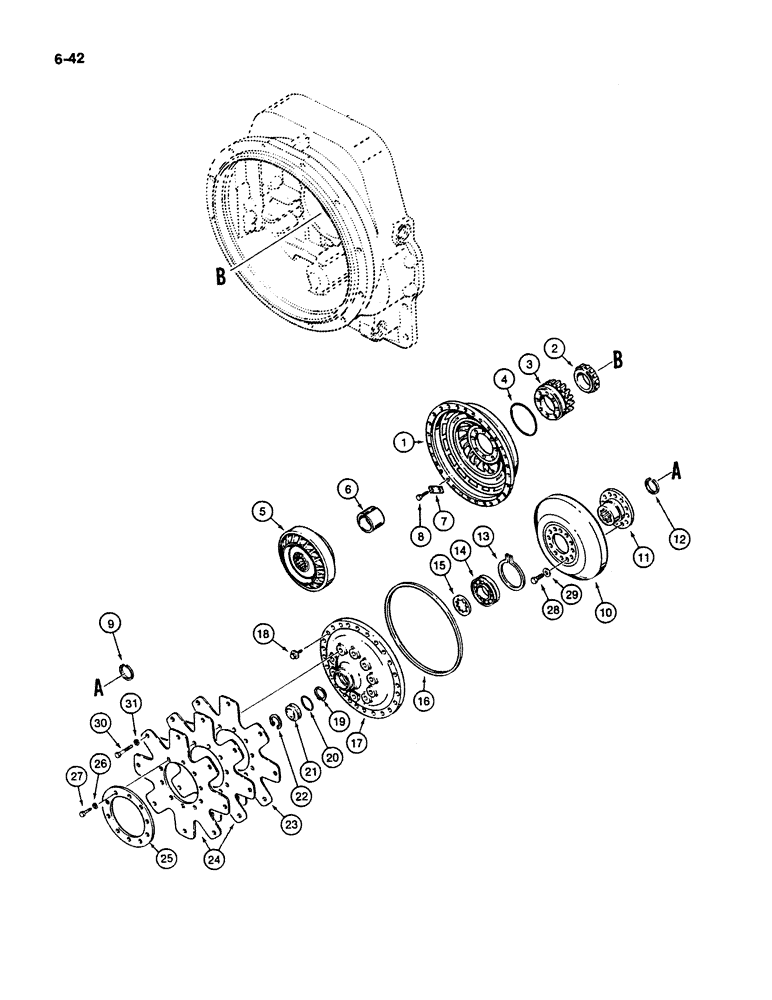

Схема запчастей Case W11B - (6-042) - CLARK TRANSMISSION, IMPELLER, TURBINE, AND FLEXPLATE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L117957

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft bolted to converter housing, no longer available, order L126647 when replacing complete transmission, Includes: Ref. 1 - 29

1шт.

L126647

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft pressed into converter housing, Includes: Ref. 1 - 29

1шт.

1

E114282

IMPELLER

- torque converter

1шт.

2

D77034

BEARING, ROLLER, CYL,49.99mm ID x 72.1mm OD x 16mm W

BEARING - impeller hub gear

1шт.

3

E114280

GEAR WHEEL

GEAR - impeller hub

1шт.

4

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

5

N7472

MEMBER

HUB - impeller

1шт.

6

E114284

SPACER

- vane, impeller to hub bearing

1шт.

7

E114283

LOCK

TAB - lock, Serial Range: impeller-hub

4шт.

8

28-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

- hex head, 3/8" - 24 NF x 3/4", grade 8

8шт.

9

E114286

CIRCLIP

RETAINING RING - bearing, small

1шт.

10

N14390

TURBINE

- shift

1шт.

11

N7378

BRACKET

HUB - turbine

1шт.

12

E114288

RING

RETAINING RING - hub

1шт.

13

E114290

RING

- locating, hub bearing

1шт.

14

E114291

BALL BEARING

BEARING - turbine hub

1шт.

15

E114292

WASHER

- bearing retaining

1шт.

16

E114293

O-RING

RING -, Serial Range: impeller-cover

1шт.

17

N14391

COVER

- impeller

1шт.

18

E114287

BOLT

BOLT - hex head, 5/16" - 18 NC x 1", special

18шт.

19

E114288

RING

- turbine retaining

1шт.

20

A62193

O-RING,1.424" ID x 1.63" OD

- impeller cover, bore plug

1шт.

21

E114296

PLUG

- bore

1шт.

22

K621779

SNAP RING,1.688, Int, #168

Ring, Snap, 1.688", Int, #168, bore plug

1шт.

N14753

NOTCHED DISK

KIT - flex plate, drive, Includes: Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

FLEX PLATE - drive, threaded bolt holes

1шт.

REF: 23A OUTER BOLT CIRCLE ONLY (THREADED WELD NUTS EXIST)

1шт.

24

NSS

NOT SOLD SEPARAT

FLEX PLATE - drive

2шт.

25

E114300

PLATE

RING - flex plate

1шт.

26

492-11038

LOCK WASHER,3/8"

10шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

28

A18033

SCREW

- hex head, 3/8" - 24 NF x 1", special

12шт.

29

25709R1

WASHER

- flat, hardened, 13/32 x 13/16 x 3/32 inch

12шт.

30

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex head, 3/8" - 24 NF x 1-3/4"

8шт.

31

492-11038

LOCK WASHER,3/8"

8шт.

Выбрано товаров: 35
