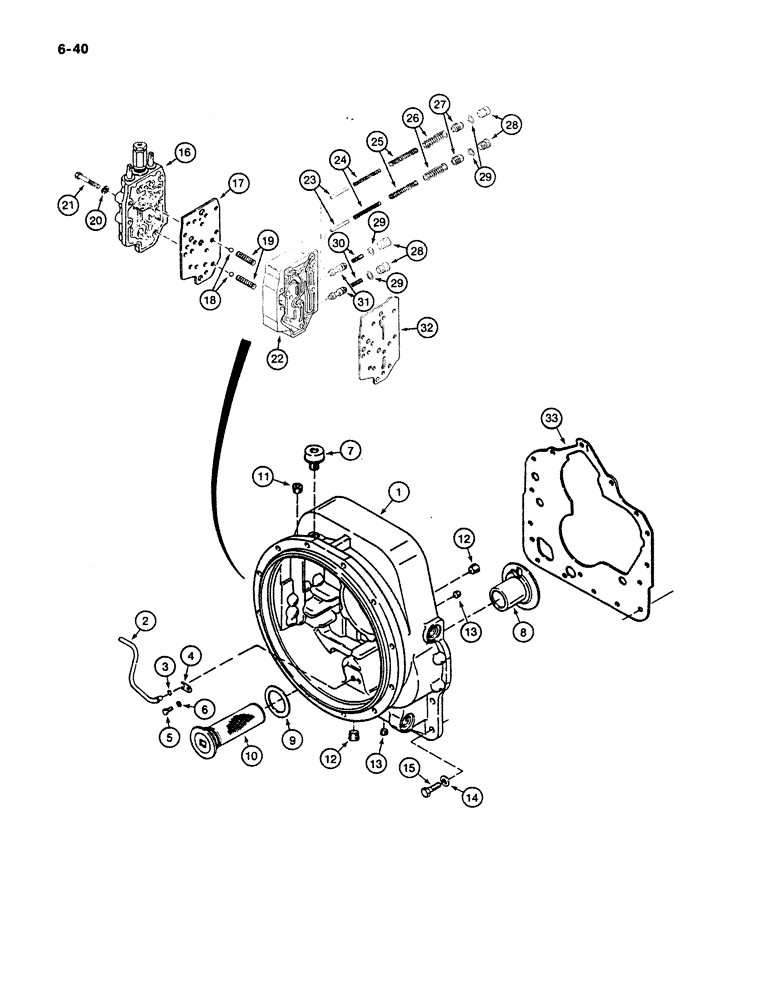

Запчасти Case W11B (6-040) - CLARK TRANSMISSION, TORQUE CONVERTER HOUSING AND CONTROL (06) - POWER TRAIN

L117957

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft bolted to converter housing, no longer available, order L126647 when replacing complete transmission, Includes: Ref. 1 - 33

1шт.

L126647

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft pressed into converter housing, Includes: Ref. 1 - 33

1шт.

N8127

HOUSING

ASSEMBLY - torque converter, used with bolt retained reverse idler shaft pin, see Refs. 45 - 48 and 53 - 55 on Figure 6-53, if used, Includes: Ref. 1 - 6

1шт.

S300125

HOUSING ASSY.

HOUSING ASSEMBLY - torque converter, used with pressed in reverse idler shaft pin, see Refs. 56 - 60 on Figure 6-53, if used, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - torque converter

1шт.

2

NLS

NO LONGER SERVICED

- lube by-pass

1шт.

3

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- tube

1шт.

4

N8129

CLIP

CLAMP - tube

1шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

N7134

BREATHER

- air, torque converter

1шт.

8

E114312

SLEEVE

- torque converter housing

1шт.

9

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- screen

1шт.

10

L33482

FILTER SCREEN

SCREEN - filter

1шт.

11

S117872

PLUG

- 1/4", special, torque converter housing

1шт.

12

E114311

PLUG

- hex socket head, 1/2" NPT

2шт.

13

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

15

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

16

N14399

CHECK VALVE

VALVE ASSEMBLY - forward and reverse, parts list Figure 6-61

1шт.

17

E114308

GASKET

- control valve

1шт.

18

211-210

BALL,3/8" Dia

- detent, 3/8 inch OD

2шт.

19

E114309

SPRING

- detent

2шт.

20

492-11038

LOCK WASHER,3/8"

9шт.

21

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

9шт.

REF: 21A N8147 VALVE ASSY SHOULD BE S300321 VALVE ASSY. PER T/S # 332-89.

1шт.

N8147

VALVE

ASSEMBLY - modulator, Includes: Ref. 22 - 31

1шт.

22

S300321

VALVE

BODY - modulator valve

1шт.

REF: 22A S300321 SHOULD BE NSS. PER T/S # 332-89

1шт.

23

N8148

AXLE PIN

PIN - accumulator

2шт.

24

N8149

SPRING

- accumulator, inner

2шт.

25

N8150

SPRING

- accumulator, middle

2шт.

26

N8151

SPRING

- accumulator, outer

2шт.

27

S300309

SPOOL

VALVE - accumulator

2шт.

REF: 27A DESCRIPTION CORRECTION TO SPOOL IN LIEU OF VALVE.

1шт.

28

86625138

PLUG,7/18" - 14

Includes Ref. 29 Hex Soc, 7/8"-14 ORB

4шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

30

N8547

SPRING

- regulator

2шт.

31

S300308

SPOOL

- regulator

2шт.

32

E114409

GASKET

- modulator valve to converter housing

1шт.

33

D87221

GASKET

- converter housing to transmission housing

1шт.
