Запчасти Case W11B (6-038) - CLARK TRANSMISSION, HOUSING, REAR COVER, AND TUBES (06) - POWER TRAIN

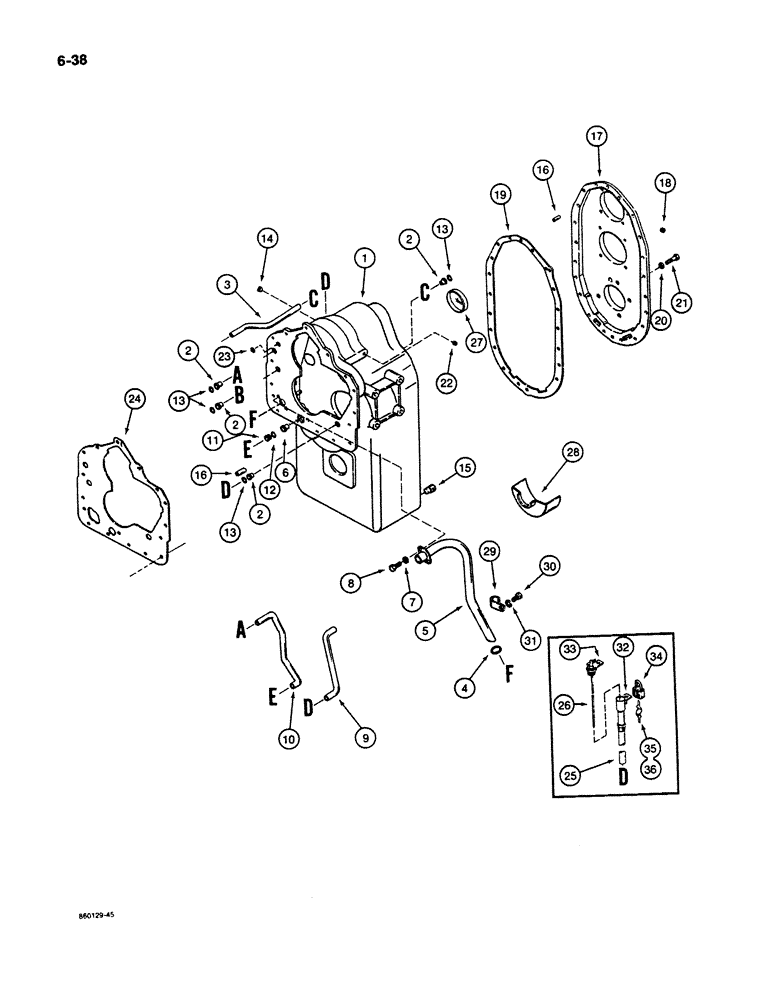

Схема запчастей Case W11B - (6-038) - CLARK TRANSMISSION, HOUSING, REAR COVER, AND TUBES (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L117957

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft bolted to converter housing, no longer available, order L126647 when replacing complete transmission, Includes: Ref. 1 - 31

1шт.

L126647

TRANSMISSION

ASSEMBLY - forward and reverse, with reverse idler shaft pressed into converter housing, Includes: Ref. 1 - 31

1шт.

1

D87259

TRANSMISSION

HOUSING - transmission case, Includes: Ref. 2 - 12

1шт.

2

A55734

SLEEVE

- tube

4шт.

3

N7146

TUBE,12.81" L

- clutch pressure, low speed

1шт.

4

N6595

O-RING

- suction tube

1шт.

5

E114319

HYD TUBE,1.125" DIA. x 2" L

TUBE - suction

1шт.

6

D87207

SLEEVE

- tube

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

9

E114320

TUBE

- clutch lubrication

1шт.

10

E114321

TUBE

- third speed

1шт.

11

E114322

PLUG

- pressure, third speed

1шт.

12

N6595

O-RING

- pressure plug

1шт.

13

L33542

O-RING,0.139" Thk x 0.796" ID, -211, Cl 7, 75 Duro

- sleeve tube

4шт.

14

S117872

PLUG

- special, transmission case

1шт.

15

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - hex socket head, 3/4" NPT, magnetic, drain

2шт.

16

A17924

PIN

- dowel

3шт.

17

E114317

COVER

- rear, transmission case, Includes: Ref. 18

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

19

E114316

GASKET

- rear, Serial Range: cover-housing

1шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

20шт.

21

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

20шт.

22

221-843

PLUG,Hex Soc, 3/8"-18

- square head, 3/8 inch PT

1шт.

23

E114251

O-RING

- clutch pressure

1шт.

24

N7138

WASHER

GASKET - transmission housing

1шт.

25

E114323

TUBE

ASSEMBLY - dipstick

1шт.

26

E114324

DIPSTICK

- transmission oil level, Not Available in NA

1шт.

27

E114336

PLUG

- expansion, transmission case

1шт.

28

E114318

BAFFLE

- transmission oil

1шт.

29

A55741

CLAMP,1", 1/2" Bolt

- suction tube

1шт.

30

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

31

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

32

L55049

SUPPORT

BRACKET - locking, if used, replaced by L127436 bracket, Ref. 37 on Figure 6-8, use Refs. 36 - 40 on Figure 6-8

1шт.

33

L118529

PLATE

TAB - locking, if used, replaced by L127437 locking links, Ref. 38 on Figure 6-9, use Refs. 36 - 40 on Figure 6-9

1шт.

34

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 35 and 36

1шт.

35

D93751

SET OF 2 KEYS

KEY - for Yale padlock, if used

2шт.

36

R29555

KEY

- for Master padlock, if used

2шт.

Выбрано товаров: 38
