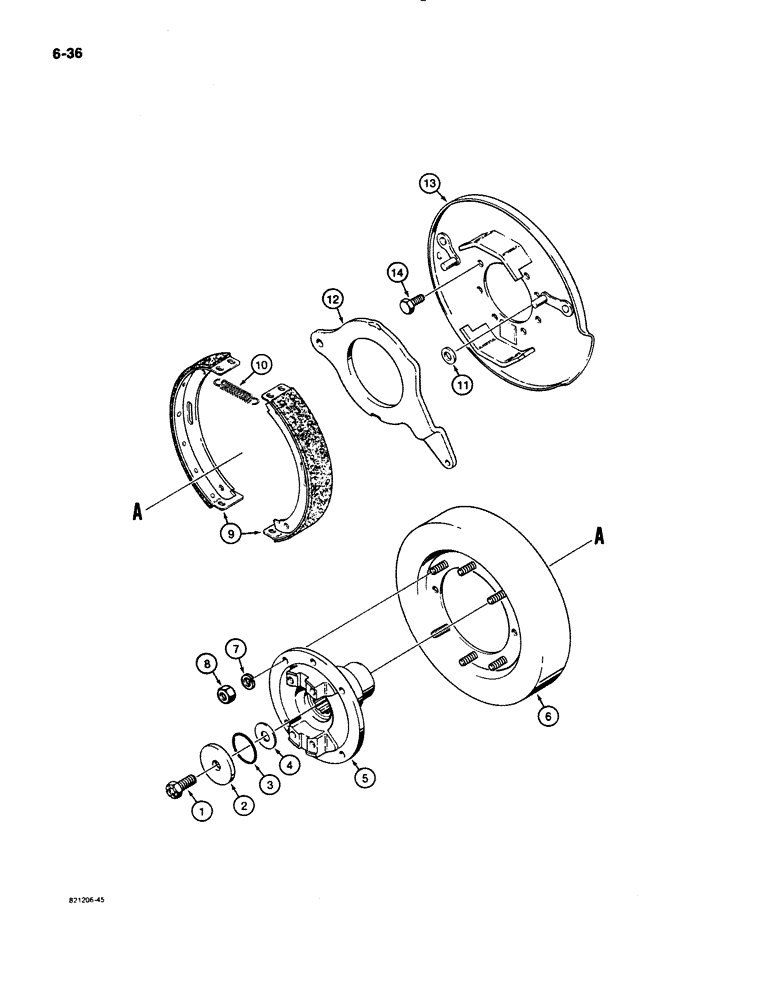

Запчасти Case W11B (6-036) - FUNK TRANSMISSION, YOKE AND BRAKE (06) - POWER TRAIN

1

121-505

BOLT,Hex, Lock, 5/8"-18 x 1 1/4"

- hex head, 5/8" - 18 NF x 1-1/4", grade 8

1шт.

2

D82994

WASHER

RETAINER - yoke

1шт.

3

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- retainer

1шт.

4

D82978

SHIM

- retainer

3шт.

5

D82980

YOKE

- drive shaft connecting

1шт.

6

D83039

BRAKE PACKAGE

DRUM - brake

1шт.

7

492-11038

LOCK WASHER,3/8"

6шт.

8

129-123

NUT,3/8"-24, G5

6шт.

9

D47524

BRAKE SHOE

SHOE AND LINING - brake

2шт.

10

S69560

SPRING

- shoe

2шт.

11

D83042

SPACER

- lever

1шт.

12

S69558

LEVER

- bellcrank

1шт.

13

S69557

LARGE PLATE

PLATE - back side

1шт.

REF: 13A PER ECS # S9104-53, WHEN DEPLETED

1шт.

13 WILL ONLY BE AVAILABLE IN KIT # 100222A1.

1шт.

14

113-490

BOLT,Hex, 1/2" - 13 x 7/8", Gr 8, Full Thd

4шт.
