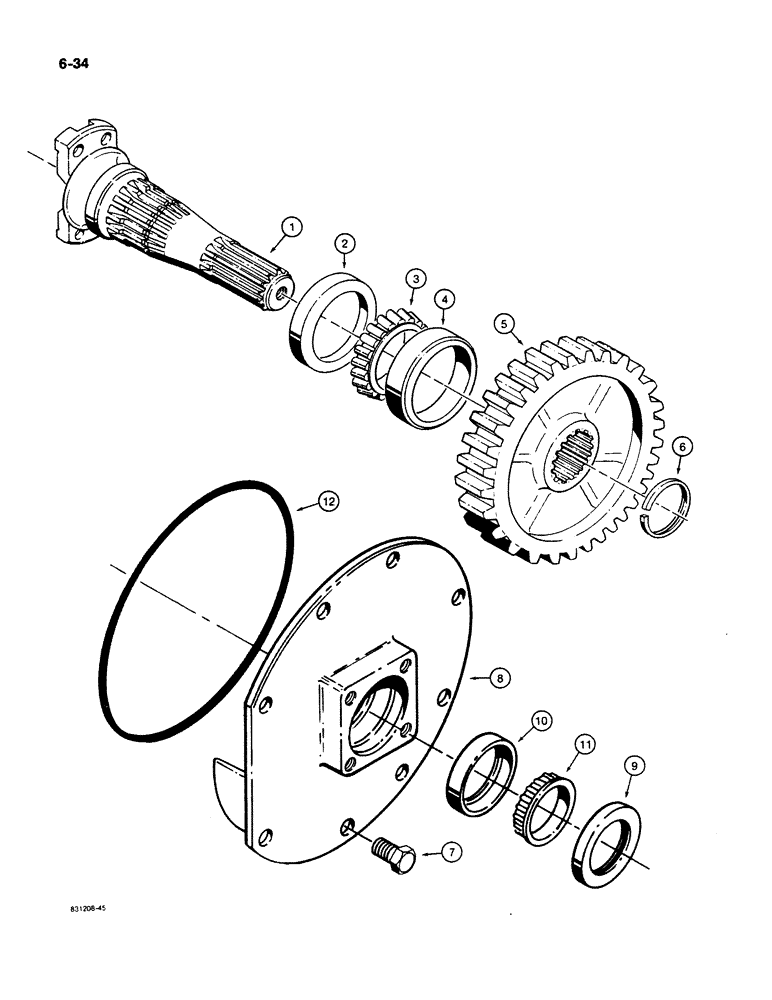

Запчасти Case W11B (6-034) - FUNK TRANSMISSION, OUTPUT SHAFT AND COVER (06) - POWER TRAIN

1

D82982

SHAFT

OUTPUT SHAFT - transmission

1шт.

2

D83019

OIL SEAL

SEAL - shaft, rear, National No. 415437

1шт.

3

L33297

ROLLER BEARING

TAPERED ROLLER BEARING - rear

1шт.

4

L33303

BEARING CUP

CUP - tapered roller bearing

1шт.

5

D82981

GEAR

- output shaft

1шт.

6

S65040

SNAP RING,#287, Ext

Ring, Snap, , gear #287, Ext

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

8

N6196

RETAINER

COVER - shaft

1шт.

9

N9861

OIL SEAL

SEAL - shaft, front, 1/2" (13 mm) wide, National No. 416273

1шт.

10

K7975

CUP ASSY.

CUP - tapered roller bearing

1шт.

11

K7976

ROLLER BEARING

TAPERED ROLLER BEARING - front

1шт.

12

S5870

O-RING,11.484" ID x 11.762" OD x 0.139"

- cover

1шт.
