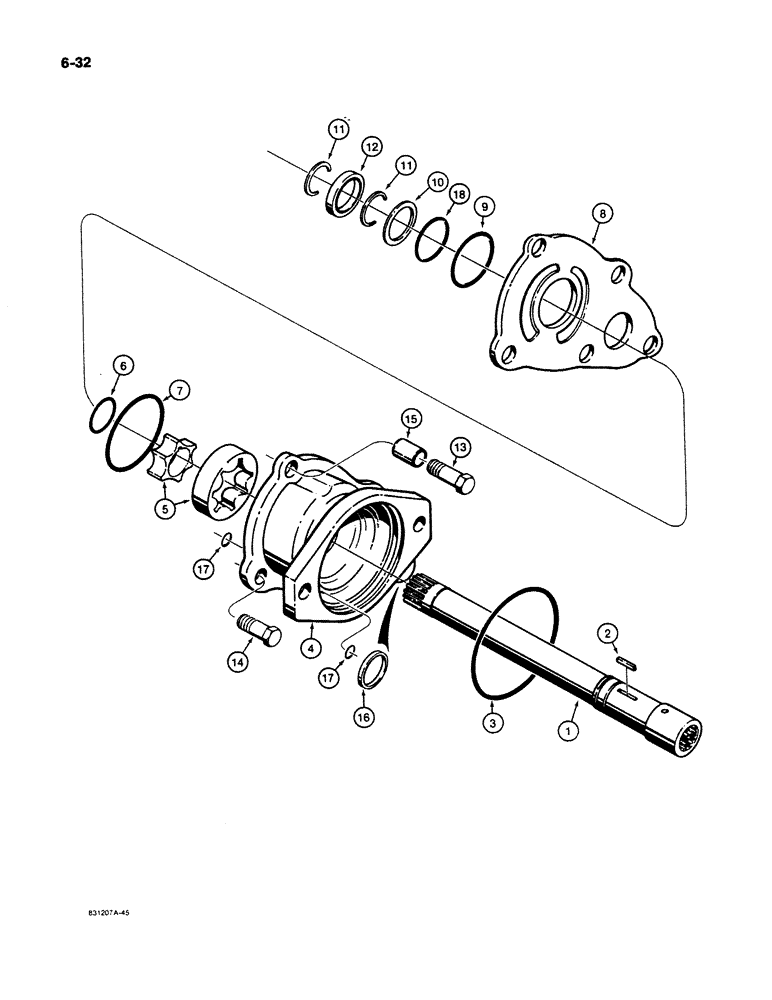

Запчасти Case W11B (6-032) - FUNK TRANSMISSION, PUMP (06) - POWER TRAIN

N7867

PUMP

ASSEMBLY - transmission, Includes: Ref. 1 - 18

1шт.

1

N7994

SHAFT

- pump

1шт.

2

D83195

KEY

- special, 3/16" square

1шт.

3

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- housing

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

5

N13976

GEROTOR

GEROTER SET - pump

1шт.

6

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- wear plate seal, small

1шт.

7

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- wear plate seal, large

1шт.

8

N7868

PLATE

- wear

1шт.

9

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- wear plate seal

1шт.

10

D83036

SPACER

- bearing

1шт.

11

N6199

OIL SEAL

RING - bearing retaining

2шт.

12

D83035

BEARING

BALL BEARING - pump

1шт.

13

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

15

D83038

BUSHING

- guide

2шт.

16

A28211

OIL SEAL

- shaft

1шт.

17

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 x 5/8 inch

2шт.

18

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- spacer

1шт.
