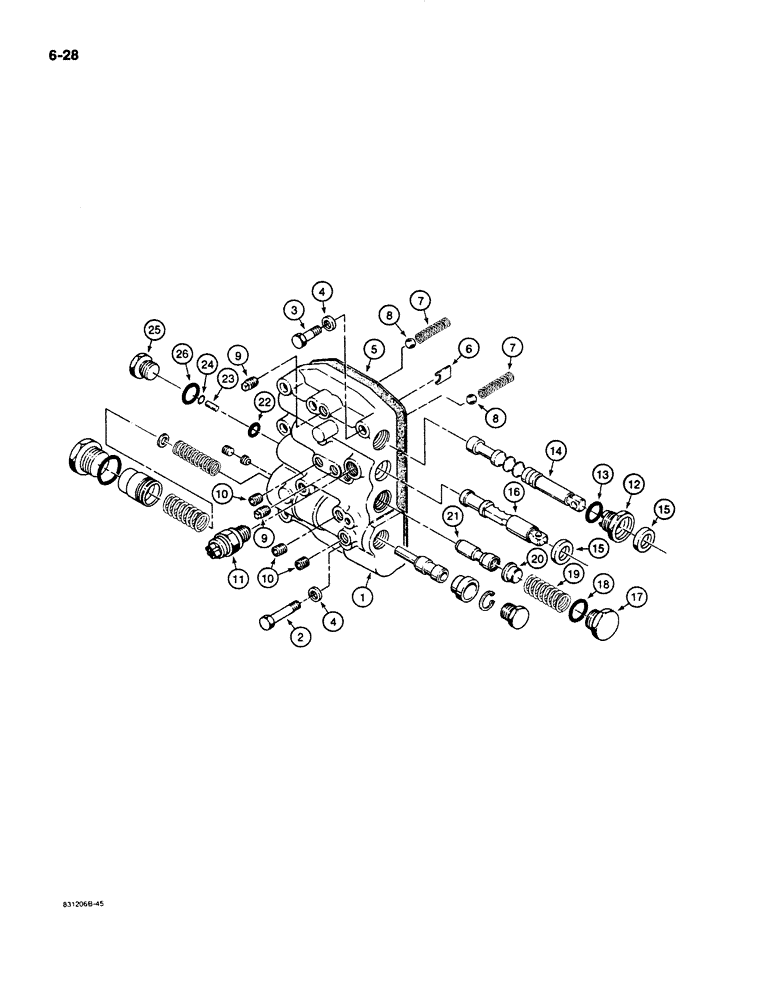

Запчасти Case W11B (6-028) - FUNK TRANSMISSION, CONTROL VALVE (06) - POWER TRAIN

N8733

VALVE

CONTROL VALVE ASSEMBLY - transmission, Includes: Ref. 1 - 26 and Ref. 27 - 38 on Figure 6-30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

26269R1

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

- hex head, 5/16" - 18 NC x 2-3/4"

3шт.

3

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

7шт.

4

195-457

WASHER,.328" x 9/16" x .065"

- flat, 5/16", aircraft type

10шт.

5

D82956

GASKET

-, Serial Range: valve-transmission

1шт.

6

N7795

FORK

- stop

1шт.

7

S114682

SPRING

- detent

2шт.

8

211-361

BALL

- detent, 3/8", steel

2шт.

9

D83055

PLUG

- square head, 1/8" NPT

2шт.

10

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

3шт.

11

S114679

SWITCH

- neutral start

1шт.

12

D82939

PLUG

RETAINER - spool

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

N6134

STEM

SPOOL - range

1шт.

15

D83018

GASKET

SEAL - spool, National No. 471466

2шт.

16

N7794

STEM

SPOOL - direction, forward and reverse

1шт.

17

D82943

PLUG

- hex head

1шт.

18

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-7/32 x 7/64 inch

1шт.

19

D82963

SPRING

- clutch cutout spool

1шт.

20

D82942

GUIDE

RETAINER - spring

1шт.

21

N7993

VALVE

SPOOL - clutch cutout

1шт.

22

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 x 5/8 inch

1шт.

23

N8734

PIN

- clutch cutout spool

1шт.

24

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

25

N8735

PLUG

- hex head

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
