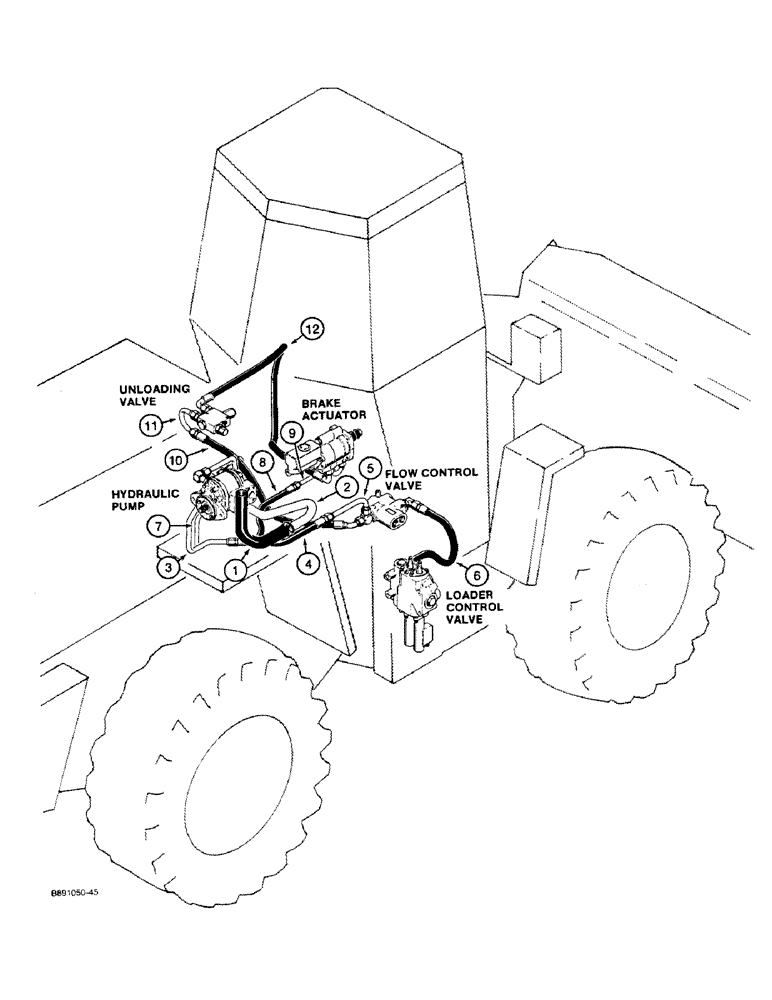

Запчасти Case W11B (1-012) - PICTORIAL INDEX, BASIC HYDRAULIC CIRCUIT, USED ON MODELS W/ CLARK TRANSMISSION (00) - PICTORIAL INDEX

1

Hose from hydraulic reservoir to supply tube at hydraulic pump, Page 8-19

1шт.

2

Tube from hose at reservoir to hydraulic pump, Page 8-19

1шт.

3

Tube from hydraulic pump outlet to connecting hose to flow control valve tube, Page 8-19

1шт.

4

Hose from tube at hydraulic pump outlet to flow control valve tube at tee, Page 8-19

1шт.

5

Tube from connecting hose to flow control valve tee, Page 8-19

1шт.

6

Hose from flow control valve to loader control valve, Page 8-19

1шт.

7

Tube from hydraulic pump outlet to connecting hose to tube at brake actuator, Page 8-21

1шт.

8

Hose from tube at hydraulic pump to tube at brake actuator, Page 8-21

1шт.

9

Tube from connecting hose to brake actuator, Page 8-21

1шт.

10

Hose from tee at flow control valve to tube at unloading valve, Page 8-21

1шт.

11

Tube from hose at tee to unloading valve, Page 8-21

1шт.

12

Hose from brake actuator to unloading valve, Page 8-21

1шт.
