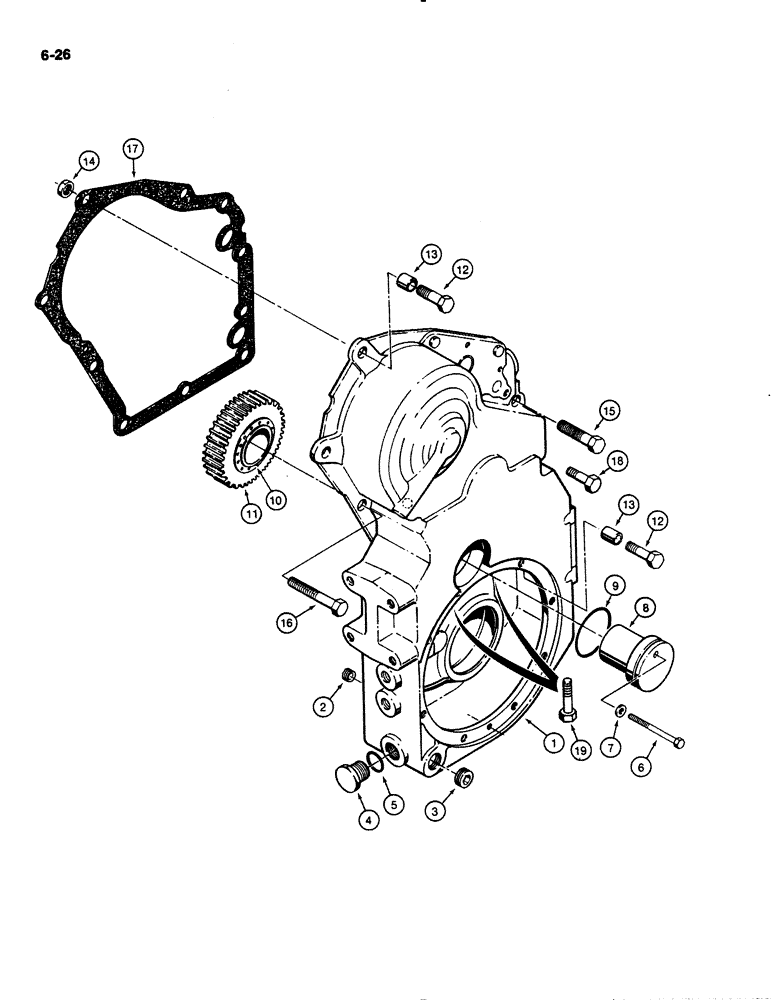

Запчасти Case W11B (6-026) - FUNK TRANSMISSION, FRONT HOUSING AND IDLER (06) - POWER TRAIN

1

N7866

HOUSING

- front, transmission

1шт.

2

221-841

PLUG

- 1/4 inch PT

1шт.

3

221-1847

PLUG

- hex socket head, 1-1/4" NPT

1шт.

4

D83197

PLUG

- hex head, includes screen filter, not shown, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.

6

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

7

D83050

WASHER

- sealing

1шт.

8

D82973

SHAFT

- idler gear

1шт.

9

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

- shaft

1шт.

10

D83017

BEARING

- idler gear, double tapered roller assembly

1шт.

11

D82975

GEAR

IDLER GEAR - transmission

1шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

13

D82940

BUSHING

- guides

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

3шт.

16

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

17

D82949

GASKET

- housing

1шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

19

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.
