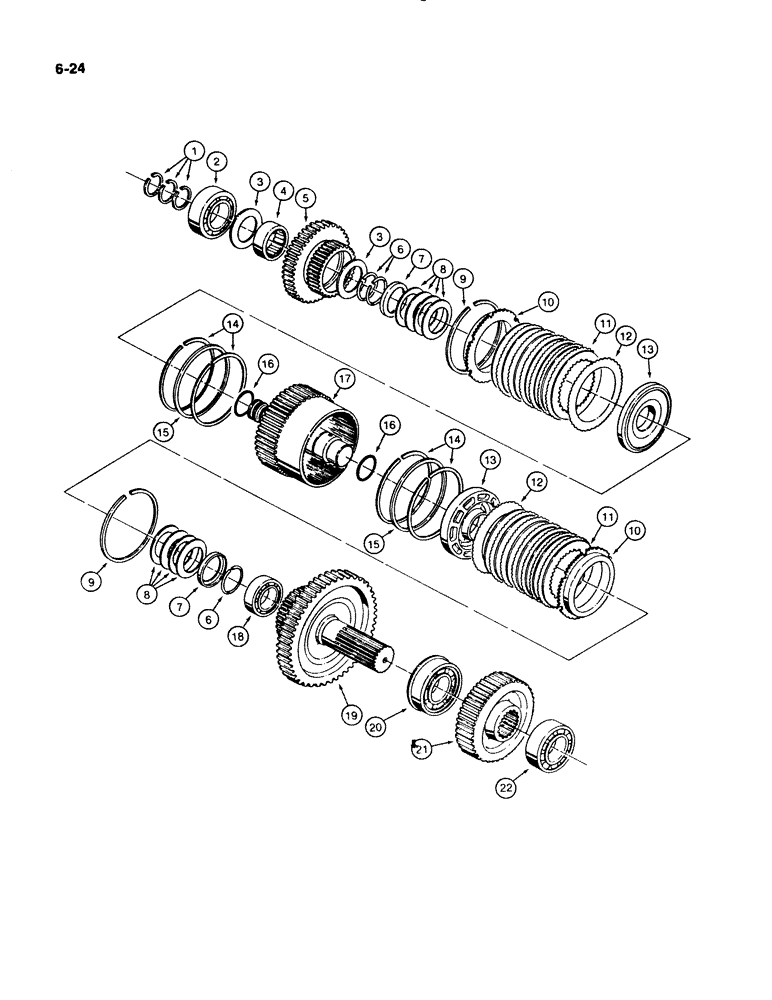

Запчасти Case W11B (6-024) - FUNK TRANSMISSION, SECOND AND REVERSE CLUTCHES (06) - POWER TRAIN

N7791

CLUTCH ASSEMBLY

CLUTCH AND GEAR ASSEMBLY - second and reverse, Includes: Ref. 1 - 22

1шт.

1

D82936

SEAL

RING - seal

3шт.

2

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - output shaft, front

1шт.

3

D82959

SPACER

- bearing

2шт.

4

D83024

NEEDLE BEARING

- gear

1шт.

5

D82960

GEAR

- reverse

1шт.

6

A65180

SNAP RING,#187, 1.759", Ext

RING - retaining, flat type

3шт.

7

N7788

RETAINER

- spring

2шт.

8

D82992

SPRING

BELLEVILLE SPRING - retainer

8шт.

9

D83194

RING

SNAP RING - pressure plate

2шт.

10

N7789

RETAINER

PRESSURE PLATE - clutch

2шт.

11

N8738

LARGE PLATE

DISC - internal tooth

14шт.

REF: 11A NEW FUNK # 4005524 IS LIGHTER IN COLOR NEW ONE IS NON-ASBESTOS USE 7 PER CLUTCH PACK.

1шт.

12

D83009

LARGE PLATE

DISC - external tooth

14шт.

13

N7785

RACE

PISTON - clutch

2шт.

14

N7787

GASKET

BACKUP RING - piston

2-4шт.

15

N7786

SEALING RING

RING - seal

2шт.

16

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- 1-11/16 x 1-7/8 x 3/32 inch

2шт.

17

N7792

SHAFT

HOUSING - clutch

1шт.

18

ST3005

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

- housing to second gear

1шт.

19

D82976

GEAR

- second

1шт.

20

D83032

ROLLER BEARING

- second gear

1шт.

21

D82977

GEAR

- output

1шт.

22

F21219

BEARING

BALL BEARING - shaft

1шт.
