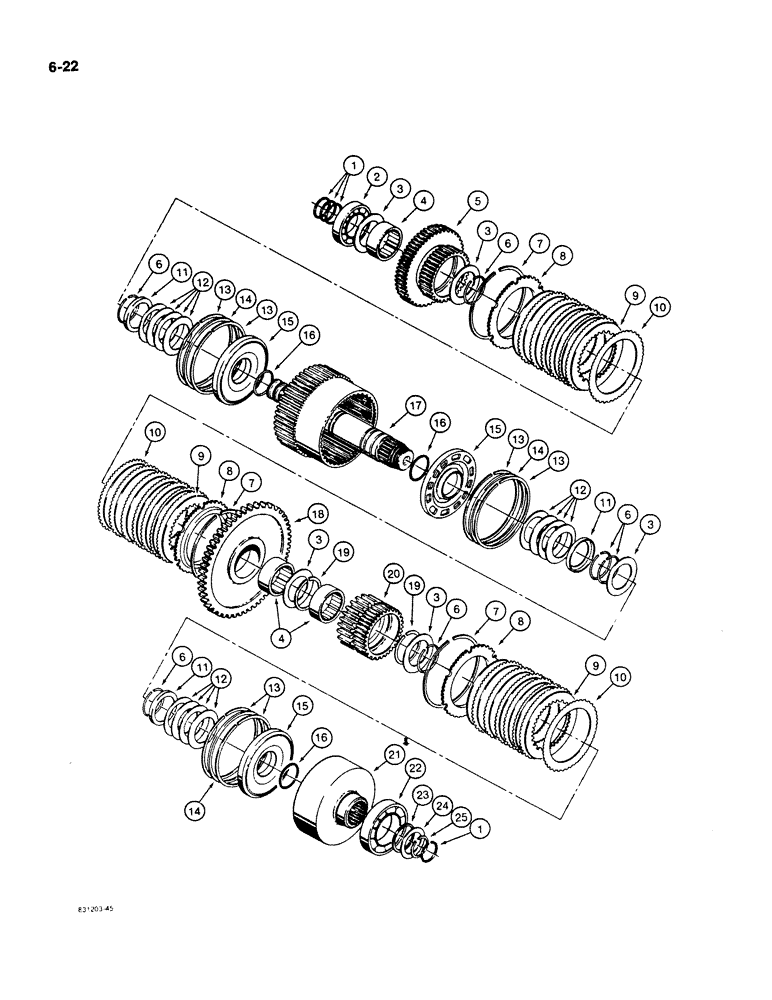

Запчасти Case W11B (6-022) - FUNK TRANSMISSION, FIRST, FORWARD, AND THIRD CLUTCHES (06) - POWER TRAIN

N7869

CLUTCH ASSEMBLY

CLUTCH AND GEAR ASSEMBLY - first, forward, and third clutches, Includes: Ref. 1 - 25

1шт.

1

D82936

SEAL

RING - seal

4шт.

2

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - output shaft, front

1шт.

3

D82959

SPACER

- bearing

5шт.

4

D83024

NEEDLE BEARING

- gear

3шт.

5

D82960

GEAR

- forward

1шт.

6

A65180

SNAP RING,#187, 1.759", Ext

RING - retaining, flat type

6шт.

7

D83194

RING

SNAP RING - pressure plate

3шт.

8

N7789

RETAINER

PRESSURE PLATE - clutch

3шт.

9

N8738

LARGE PLATE

DISC - internal tooth

21шт.

REF: 9A NEW FUNK # 4005524 DISC IS LIGHTER

1шт.

IN COLOR - NOW IS NON-ASBESTOS USE 7 PER CLUTCH PACK.

1шт.

10

D83009

LARGE PLATE

DISC - external tooth

21шт.

11

N7788

RETAINER

- spring

3шт.

12

D82992

SPRING

BELLEVILLE SPRING - retainer

12шт.

13

N7787

GASKET

BACKUP RING - piston

3-6шт.

14

N7786

SEALING RING

RING - seal

3шт.

15

N7785

RACE

PISTON - clutch

3шт.

16

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- 1-11/16 x 1-7/8 x 3/32 inch

3шт.

17

N7870

HOUSING

- clutch

1шт.

18

D82962

HUB ASSY.

GEAR - third

1шт.

19

D83056

GASKET

SNAP RING - bearing

2шт.

20

D87199

GEAR

- first

1шт.

21

N7790

HUB

DRUM AND HUB - clutch

1шт.

22

D83013

BEARING

BALL BEARING - housing shaft, outer

1шт.

23

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- shaft

1шт.

24

A65414

WASHER,38.28mm ID x 55.04mm OD x 1.56mm Thk

THRUST WASHER - bearing

1шт.

25

A57011

SNAP RING,#150, 1.408", Ext

- bearing

1шт.
