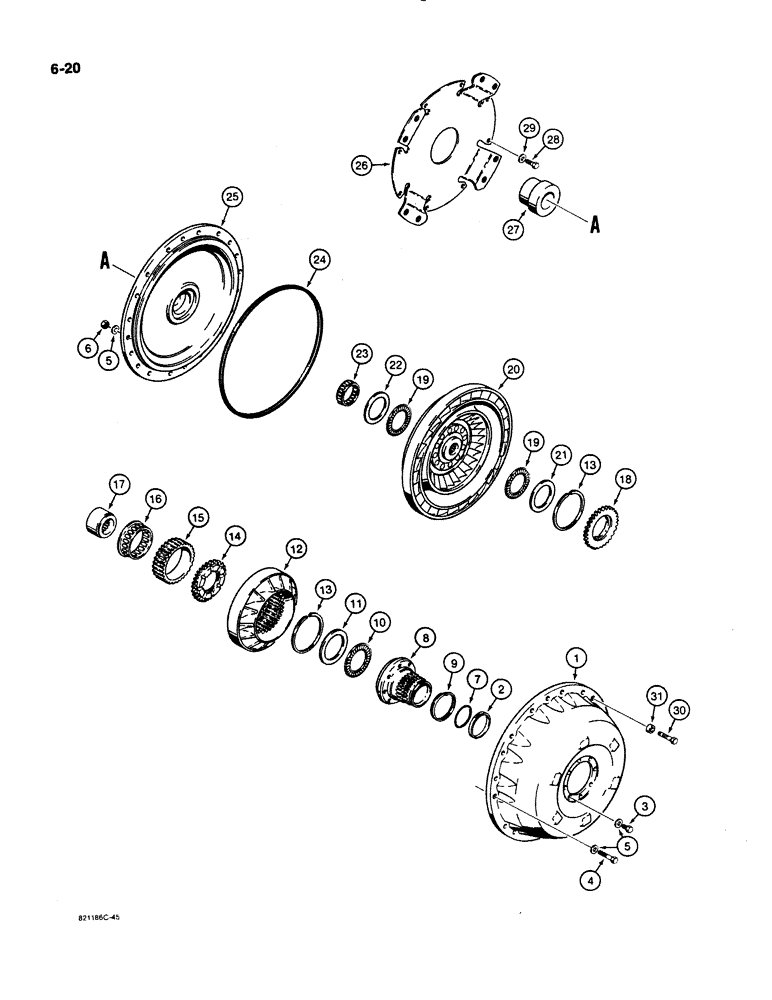

Запчасти Case W11B (6-020) - FUNK TRANSMISSION, TORQUE CONVERTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
N8731
CONVERTER
TORQUE CONVERTER - transmission, Includes: Ref. 1 - 25
1шт.
1
N7879
IMPELLER
HOUSING - torque converter
1шт.
2
D82935
SEAL
SEAL - small
1шт.
3
N7861
BOLT
- special
8шт.
4
26-518
BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 8
- hex head, 5/16" - 18 NC x 1-1/8"
12шт.
REF: 4A IF UNIT HAS BOLT WITH LENGTH OF 1 1/4" USE S114483
1шт.
5
N7848
WASHER
- flat, 5/16", special
32шт.
6
131-462
NUT,5/16"-18
NUT - hex, 5/16" - 18 NC
12шт.
7
D41420
O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro
- hub
1шт.
8
N7853
HUB
- torque converter
1шт.
9
N7845
OIL SEAL
RING - retaining
1шт.
10
S108936
THRUST BEARING,THRUST
NEEDLE BEARING - hub
1шт.
11
N7862
RACE
- needle bearing
1шт.
12
N8732
STATOR
- torque converter
1шт.
13
N7846
RING, SNAP
SNAP RING - clutch
2шт.
14
N7863
RETAINER
- clutch
1шт.
15
N7857
RACE
HOUSING - clutch
1шт.
16
S108997
CLUTCH
- torque converter
1шт.
17
N7856
RACE
HUB - clutch
1шт.
18
N7855
RETAINER
- clutch
1шт.
19
N7858
NEEDLE BEARING
- turbine
2шт.
20
N7880
TURBINE
- torque converter
1шт.
21
N7864
RACE
- needle bearing
1шт.
22
613179R1
THRUST WASHER
RACE - outer bearing
1шт.
23
N7859
BEARING
- outer
1шт.
24
N7860
SEAL
- square section
1шт.
REF: 24A SEAL INFO: FUNK USES AN OPTIONAL ROUND O-RING HERE IN LIEU OF THE
1шт.
SQUARE CROSS SECTION TYPE SEAL. BOTH ARE APPROVED.
1шт.
25
N8911
COVER
- torque converter
1шт.
26
N7877
PLATE
FLEX PLATE - torque, Serial Range: converter-engine
1шт.
27
N8730
SLEEVE
- pilot
1шт.
HUB IS INTEGRAL TO THE IMPELLER COVER N14391.
1шт.
28
121-205
LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8
BOLT - hex head, 3/8" - 16 NC x 3/4"
8шт.
29
L112726
WASHER
- special
8шт.
30
L123791
BOLT
- special
8шт.
REF: 30A REPLACED BY 166-527 1 1/2" x 5/16" HEX. CAPSCREW.
1шт.
31
L123790
WASHER
- special
8шт.
REF: 31A REPLACED BY L101105 FLAT 1/2 WASHER
1шт.
Выбрано товаров: 38
