Запчасти Case W11B (6-018) - FUNK TRANSMISSION, REAR HOUSING, INPUT SHAFT, AND PUMP DRIVE (06) - POWER TRAIN

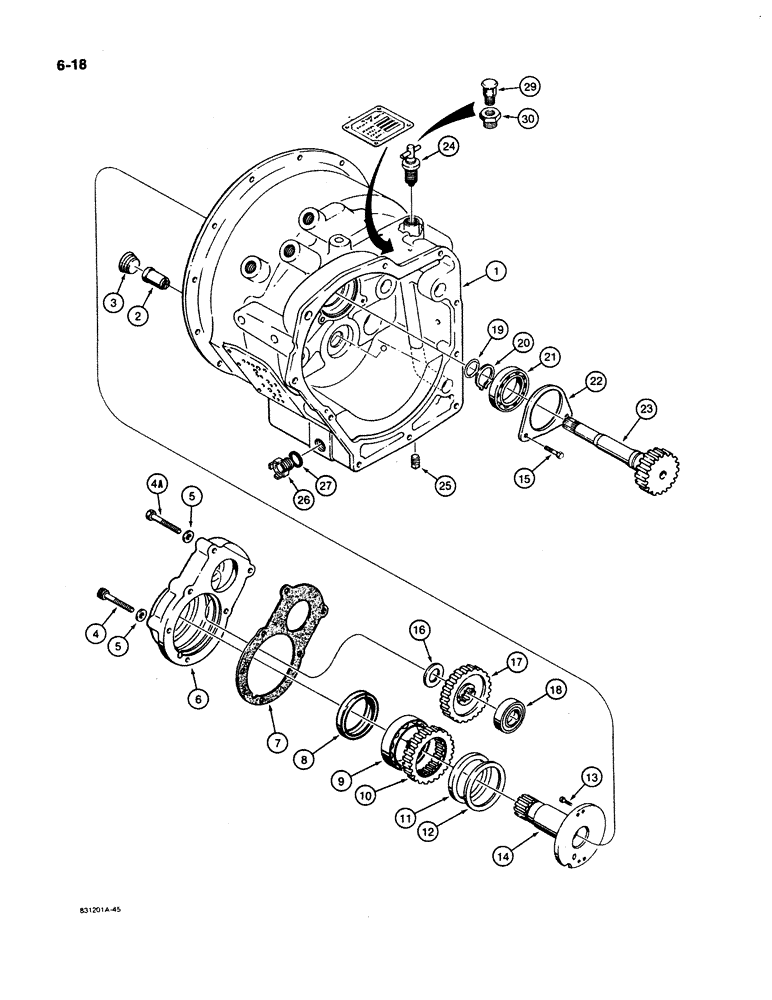

Схема запчастей Case W11B - (6-018) - FUNK TRANSMISSION, REAR HOUSING, INPUT SHAFT, AND PUMP DRIVE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

N8729

COVER ASSY

HOUSING ASSEMBLY - transmission, no longer available, order N13578 housing assembly, Includes: Ref. 1 - 3

1шт.

N13578

COVER ASSY

HOUSING ASSEMBLY - transmission, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

2

N60057

CHECK VALVE

VALVE - relief, used with N8729 and N13578 housing assemblies

1шт.

3

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex head, 1" NPT, used with N8729 and N13578 housing assemblies

1шт.

4

61-532

HEX SOC SCREW,5/16"-18 x 2"

BOLT - hex socket head, 5/16" - 18 NC x 2"

4шт.

4a

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

5

D83049

WASHER

- sealing

6шт.

6

D82974

HOUSING

COVER - pump drive

1шт.

7

N7874

GASKET

- cover

1шт.

8

D82944

OIL SEAL

- bearing

1шт.

9

A54073

BALL BEARING,2.5591" ID x 3.937" OD x 0.7087"

- support

1шт.

10

D82948

GEAR

- pump drive, lower

1шт.

11

A142056

THRUST BEARING,69.9mm ID x 91.82mm OD x 3.17mm W

NEEDLE BEARING - gear

1шт.

12

A142053

THRUST WASHER

RACE - needle bearing

1шт.

13

164-30

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 5/8"

BOLT - hex socket, flat head, 1/4" - 20 NC x 5/8"

2шт.

14

N7873

SUPPORT TUBE,1.25" ID x 1.529" OD x 5.06" L

SUPPORT - transmission

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

16

G46082

WASHER

THRUST WASHER - gear

1шт.

REF: 19A ELIMINATE ER ECS S2088-32 - NO LONGER USED. REF. # 16 SHOULD BE REPLACED

1шт.

BY REF. 16 TO ALLOW SHORTER BOLT TO BE USED.

1шт.

17

D82947

GEAR

- pump drive, lower

1шт.

18

D83031

ROLLER BEARING

- gear

1шт.

19

D82936

SEAL

SEAL - input shaft

1шт.

REF: 19A ELIMINATE ER ECS S2088-32 - NO LONGER USED. REF. # 16 SHOULD BE REPLACED

1шт.

20

A17903

SNAP RING,#156, Ext

Ring, Snap, , bearing #156, Ext

1шт.

21

D83021

BALL BEARING

- input shaft

1шт.

22

D82946

RETAINER

RING - bearing retaining

1шт.

23

N7014

SHAFT

- input

1шт.

24

D87198

CAP

PLUG - filler, used with N8729 housing assembly

1шт.

25

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4" NPT

1шт.

26

N7875

PLUG

- special, 1-1/2"

1шт.

27

N7876

GASKET

- plug

1шт.

28

B17504

GASKET

SEALANT - gasket eliminator, 300 ml cartridge, applied to flywheel housing before assembly of transmission to housing, not shown

1шт.

29

N13620

BREATHER

PLUG - breather

1шт.

30

N13621

BUSHING

REDUCER - breather plug

1шт.

Выбрано товаров: 36
