Запчасти Case W11B (6-016) - TRANSMISSION MOUNTING, CLARK TRANSMISSION (06) - POWER TRAIN

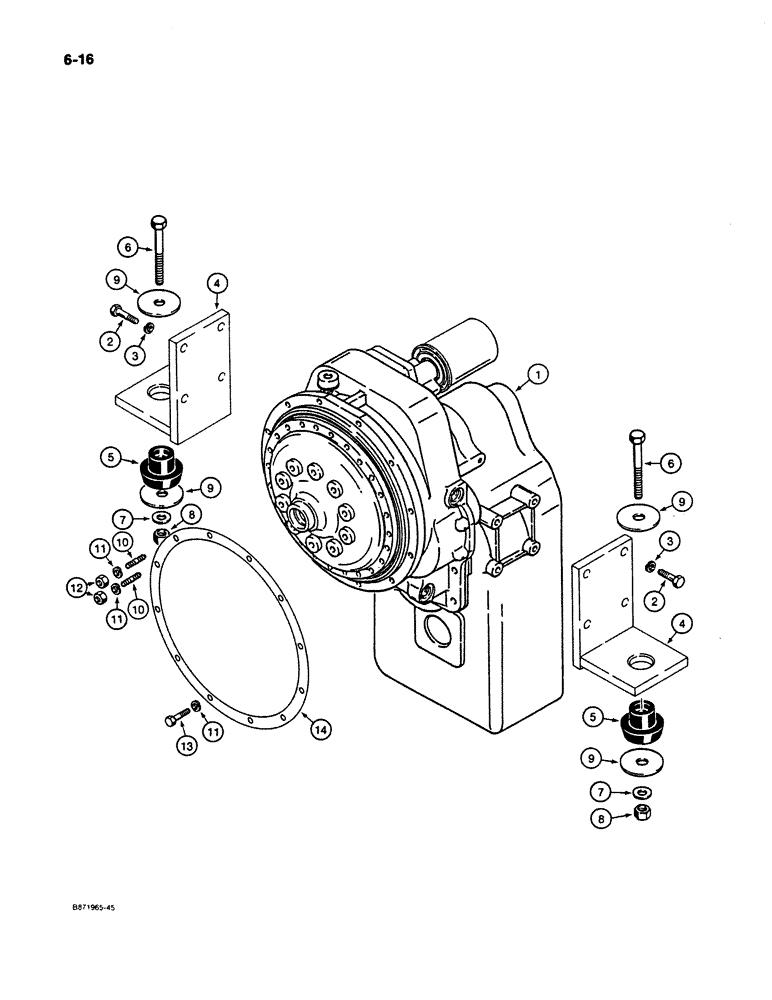

Схема запчастей Case W11B - (6-016) - TRANSMISSION MOUNTING, CLARK TRANSMISSION (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - parts list Figures 6-38 - 6-62

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

L118123

SUPPORT

BRACKET ASSEMBLY - transmission mounting, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - transmission mounting

1шт.

5

A19066

MOUNTING PARTS

MOUNT - transmission, rubber

1шт.

6

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

7

L79179

WASHER

- flat, hardened

2шт.

8

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

9

A19068

WASHER

- rubber transmission mount, 3-3/4" OD

4шт.

10

L112126

STUD

-, Serial Range: housing-engine

2шт.

11

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

12шт.

12

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

2шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Housing to engine Hex, M10 x 40, 8.8, Full Thd

10шт.

14

D47428

GASKET

- converter, Serial Range: housing-engine

1шт.

Выбрано товаров: 15
