Запчасти Case W11B (6-014) - TRANSMISSION MOUNTING, FUNK TRANSMISSION (06) - POWER TRAIN

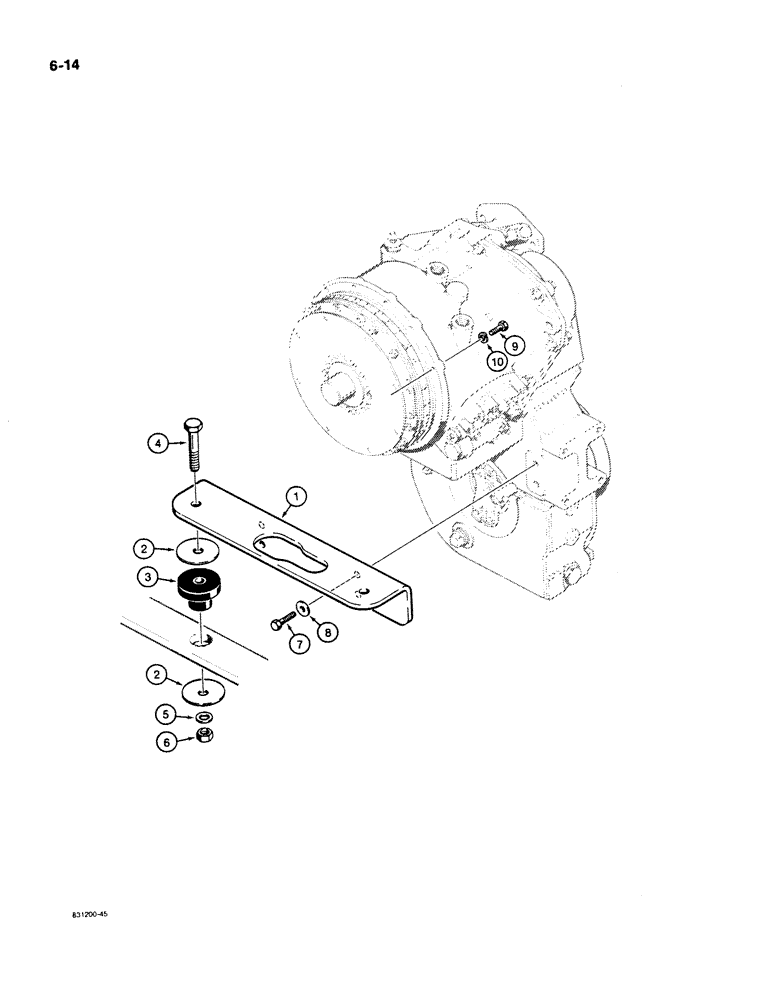

Схема запчастей Case W11B - (6-014) - TRANSMISSION MOUNTING, FUNK TRANSMISSION (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

L112705

BRACKET

SUPPORT - transmission

1шт.

2

A19068

WASHER

- flat, 3/4", special

4шт.

3

A19066

MOUNTING PARTS

INSULATOR - rubber transmission mount

2шт.

4

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

5

L79179

WASHER

- flat, hardened

2шт.

6

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

7

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex head, 5/8" - 11 NC x 1-3/4"

4шт.

8

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 5/8", special

4шт.

9

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

10

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

12шт.

CLARK TRANSM. #'S 9151556 - 9151789 - 9151760-

1шт.

9164337 AND LATER.

1шт.

FUNK TRANSMISSION CONTAINS P.I.N. #'S

1шт.

Выбрано товаров: 13
