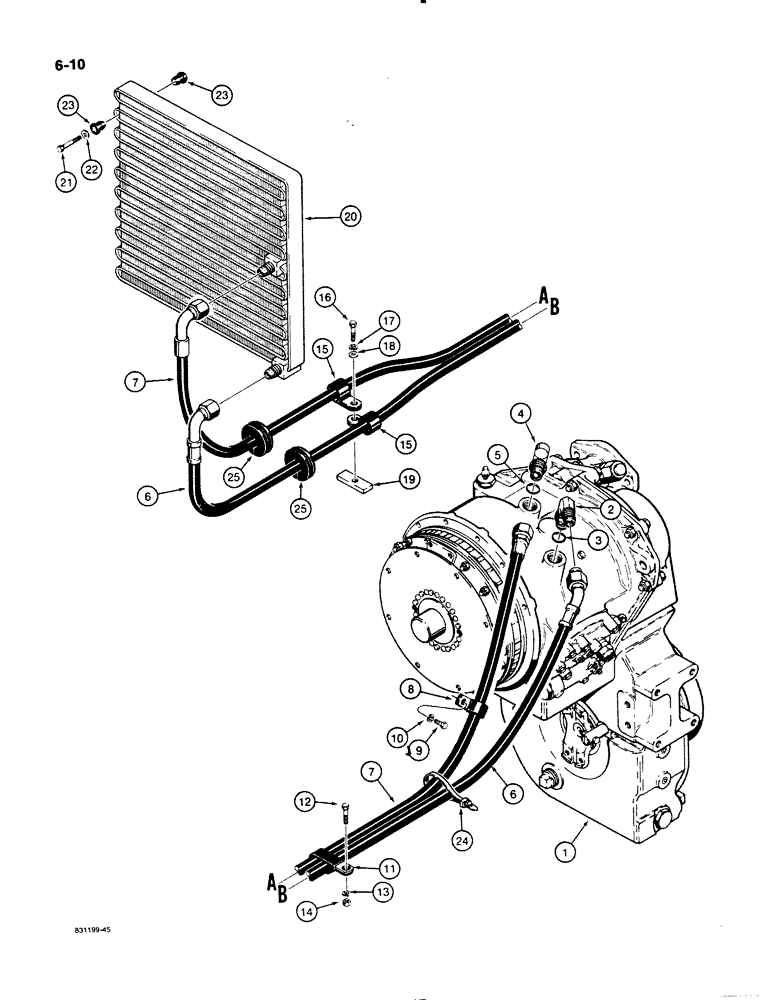

Запчасти Case W11B (6-010) - HYDRAULIC CIRCUIT - FUNK TRANSMISSION, TRANSMISSION TO OIL (06) - POWER TRAIN

1

L112326

TRANSMISSION

ASSEMBLY - parts list Figures 6-19 - 6-37

1шт.

2

L114091

FITTING

ELBOW - 90 degree, special, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

4

L111927

TEE

- adjustable, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

6

L111653

HOSE ASSY.

HOSE - transmission cooler return

1шт.

7

L111656

HOSE ASSY.

HOSE - transmission cooler

1шт.

8

D34033

CLAMP

- tube

1шт.

9

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm

1шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

11

L111928

CLAMP

- hose

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

D34033

CLAMP

- tube

2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, if Ref 19 spacer is used

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if Ref. 19 spacer is not used

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

19

L111940

SPACER

- hose clamp, if used

1шт.

20

A171605

COOLER

- transmission oil, Includes: Ref. 21 - 23

1шт.

21

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

- hex, 8 mm - 1.25 x 65 mm

5шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

5шт.

23

N6770

GROMMET

- rubber

10шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- rubber, return hose

2шт.
