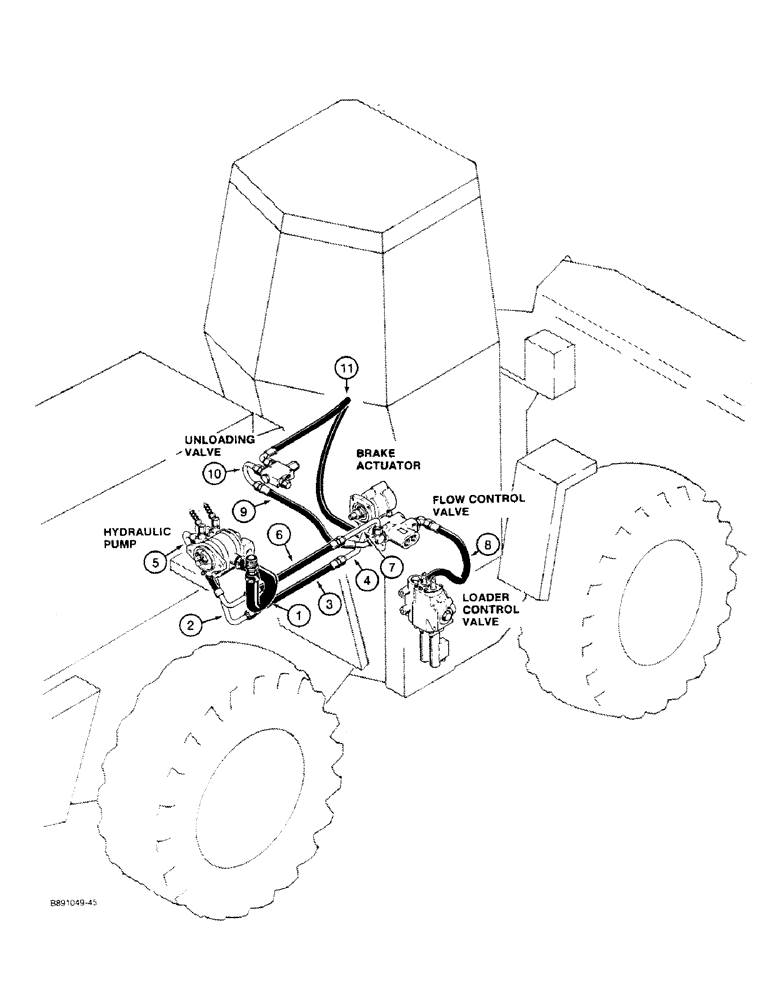

Запчасти Case W11B (1-010) - PICTORIAL INDEX, BASIC HYDRAULIC CIRCUIT, USED ON MODELS W/ FUNK TRANSMISSION (00) - PICTORIAL INDEX

1

Hose from hydraulic reservoir to hydraulic pump, Page 8-15

1шт.

2

Tube from hydraulic pump to connecting hose to tube at brake actuator, Page 8-17

1шт.

3

Hose from tube at pump to tube at brake actuator, Page 8-17

1шт.

4

Tube from connecting hose to brake actuator, Page 8-17

1шт.

5

Tube from hydraulic pump to connecting hose to tube at flow control valve tee, Page 8-15

1шт.

6

Hose from tube at pump to tube at flow control valve tee, Page 8-15

1шт.

7

Tube from connecting hose to tee at flow control valve, Page 8-15

1шт.

8

Hose from flow control valve to loader control valve, Page 8-17

1шт.

9

Hose from tee at flow control valve to tube at unloading valve, Page 8-15

1шт.

10

Tube from hose at tee to unloading valve, Page 8-17

1шт.

11

Hose from brake actuator to unloading valve, Page 8-17

1шт.
