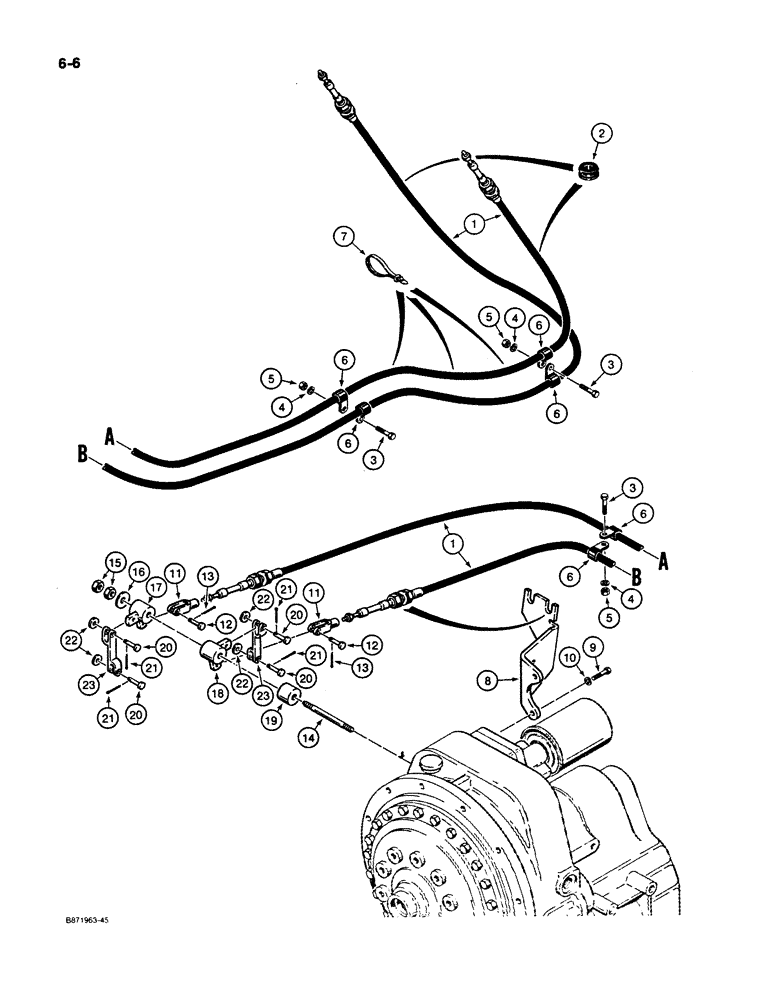

Запчасти Case W11B (6-006) - TRANSMISSION CONTROL CABLES AND LINKAGE, CLARK TRANSMISSION (06) - POWER TRAIN

1

L118519

CABLE

ASSEMBLY - control

2шт.

2

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- cables, at floor plate

2шт.

3

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

6

49838

CLAMP

- mounting, tube

6шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

L118101

BRACKET

- transmission control cable

1шт.

9

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

10

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

A18709

CLEVIS

- cable end

2шт.

12

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

2шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

14

L103592

STUD

- bellcrank

1шт.

15

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

16

D64050

WASHER

- flat, 1/2", hardened, plated

1шт.

17

L123751

ARM ASSY.

BELLCRANK - transmission control

1шт.

18

L123750

ARM ASSY.

BELLCRANK - transmission control

1шт.

19

L103593

SPACER

- bellcrank

1шт.

20

141-60

CLEVIS PIN,5/16" x 1 1/8"

- 5/16", special length

4шт.

21

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

22

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

4шт.

23

L123727

LINK

- transmission control

2шт.
