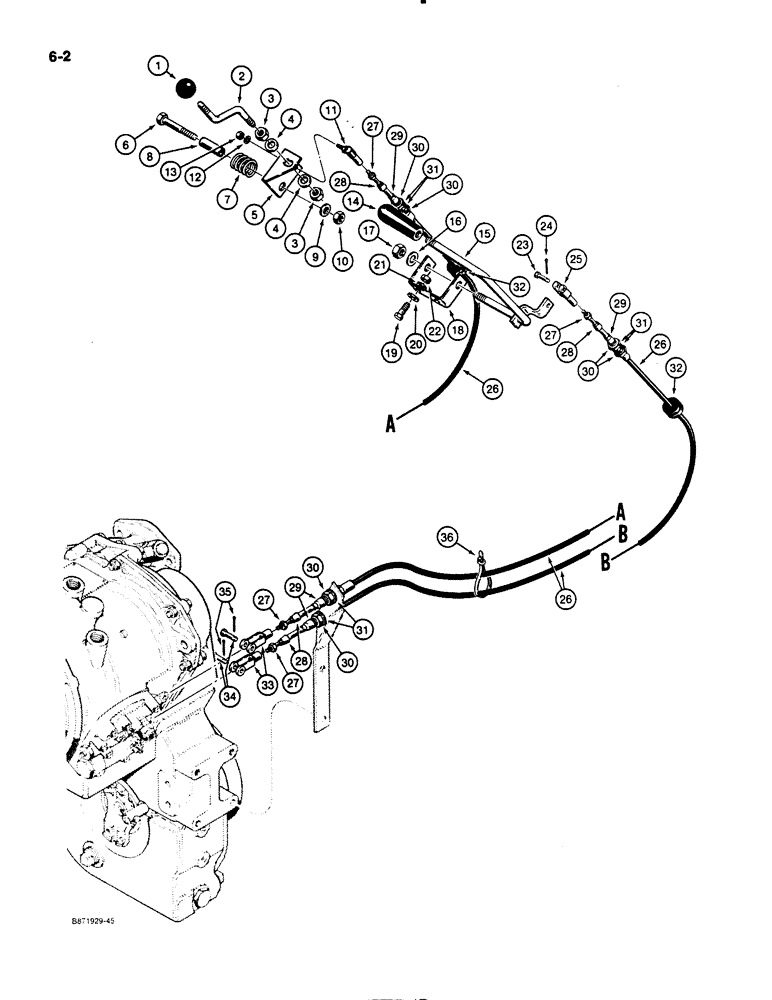

Запчасти Case W11B (6-002) - TRANSMISSION CONTROL PARTS, FUNK TRANSMISSION (06) - POWER TRAIN

1

A23885

KNOB

- range control lever

1шт.

2

L104396

LEVER

- control, range

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

4

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

5

L100729

BRACKET

- range control lever

1шт.

6

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

7

L76613

SPRING

- bracket

1шт.

8

L76651

SPACER

- bolt

1шт.

9

R24718

WASHER

- hardened

1шт.

10

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

11

A10329

BALL JOINT,1/4" - 28 x 1"

- cable end

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

13

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

14

L55721

HANDLE

- direction control lever

1шт.

15

L74845

LEVER

- control, direction

1шт.

16

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special

1шт.

17

131-1330

JAM NUT,Jam, 5/8"-18

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

18

L74799

BRACKET

- direction control lever

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

23

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch

1шт.

24

132-329

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

25

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - 1/4"

1шт.

L112452

CABLE PULLING GRIP

CABLE ASSEMBLY - control, Includes: Ref. 26 - 31

2шт.

26

NSS

NOT SOLD SEPARAT

CABLE - control

1шт.

27

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

28

D80549

ROD

SLEEVE - cable

2шт.

29

D80550

PIVOT

SEAL - swivel

2шт.

30

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

4шт.

31

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

4шт.

32

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- cables, at floor plate

2шт.

33

A60661

YOKE

CLEVIS - transmission control

2шт.

34

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

35

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
