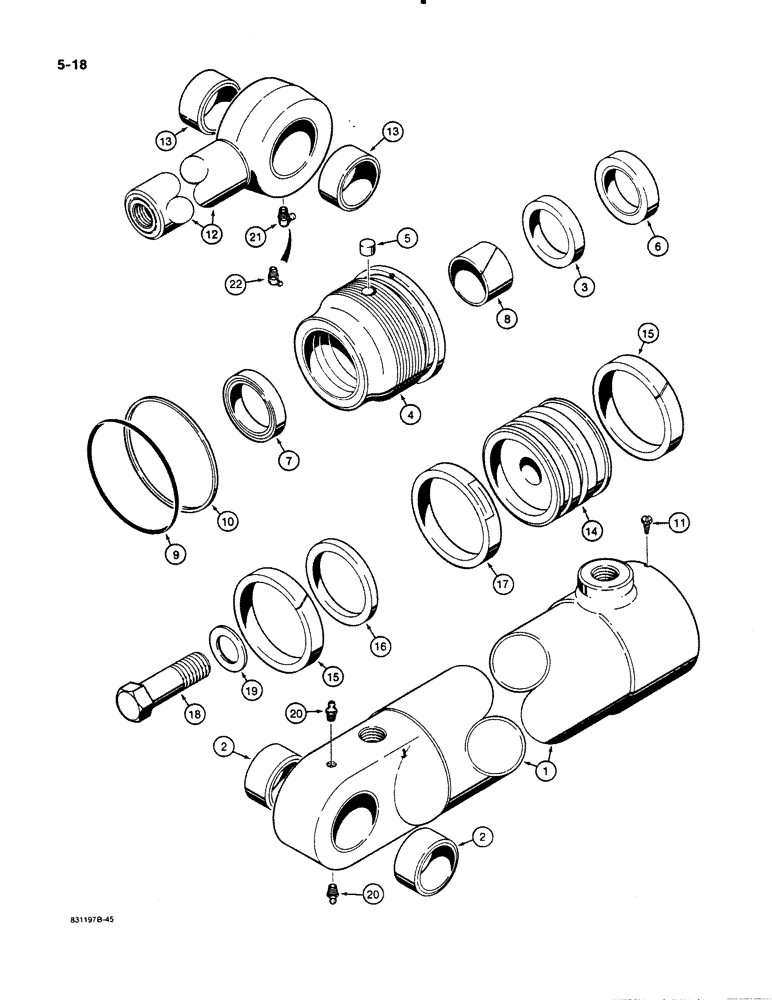

Запчасти Case W11B (5-018) - G103549 STEERING CYLINDER (05) - STEERING

G103549

CYLINDER

ASSEMBLY - 3" (76 mm) ID x 12-11/64" (309 mm) stroke, steering, Includes: Ref. 1 - 22

1шт.

1

G103550

TUBE,76mm Bore Dia

- cylinder, Includes: Ref. 2

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- tube

2шт.

G103567

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G105548

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, with O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G105548

1шт.

7

G100776

SEAL

U-CUP SEAL - piston rod, severe heat or cold

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G105548

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G105548

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G105548

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, self tapping, no. 8 NC x 3/8 inch, if used

1шт.

12

G101127

ROD

- piston, 1-1/2" (381 mm) diameter, Includes: Ref. 13

1шт.

13

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

14

G100442

PISTON

- cylinder

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G105548

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G105548

1шт.

17

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G105548

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Not used, see Ref. 22 90º, 1/8" NPT x .84" lg

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT

1шт.

G105548

KIT

seal, Includes: Ref. 6, 7, 8, 9, 10, 15, 16, 17

1шт.
