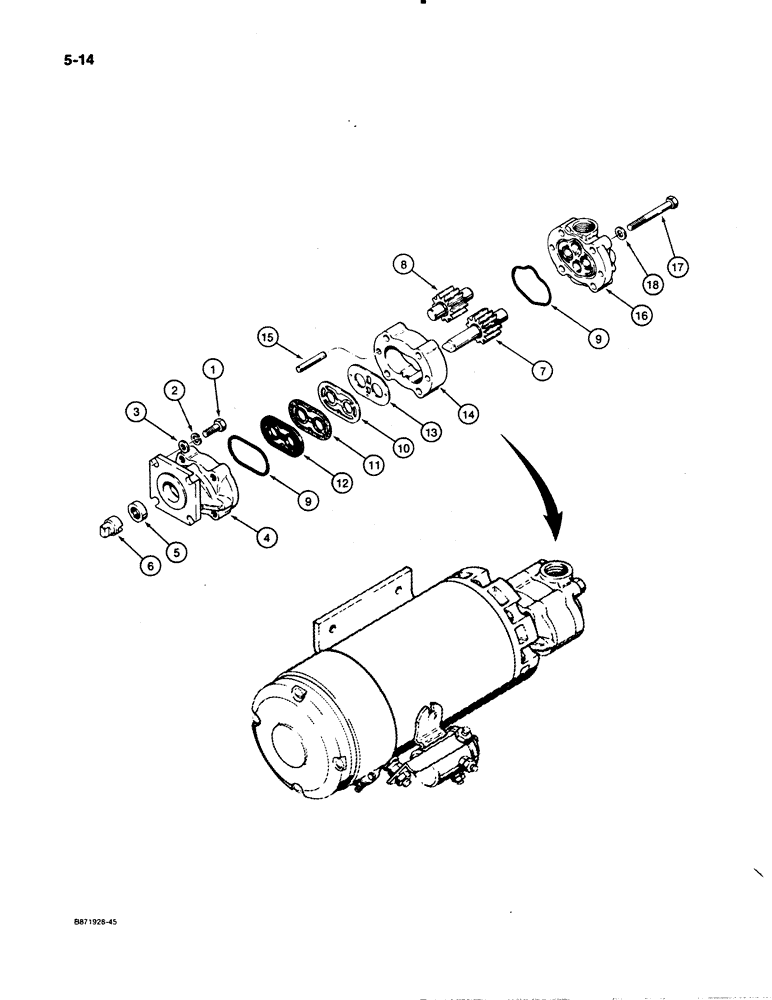

Запчасти Case W11B (5-014) - L78440 AUXILIARY STEERING PUMP (05) - STEERING

1

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

3

195-103

WASHER,5/16"

- flat, 5/16 inch

4шт.

L78440

PUMP

ASSEMBLY - auxiliary steering, Includes: Ref. 4 - 18

1шт.

4

D71496

COVER

- drive shaft end

1шт.

5

A52213

SEAL,12.7mm ID x 25.48mm OD x 6.35mm Thk

- cover

1шт.

6

D71498

COUPLING

- pump drive

1шт.

REF: 6A ECN # S2088-4 CALLS FOR THE DELETE OF REF. # 6. ALL UNITS BUILT PRIOR TO

1шт.

THIS CHANGE REQUIRE # 6 OR THE JUMP SHAFT WILL FALL SHORT OF

1шт.

ENGAGEMENT INTO THE MOTOR SLOT IN THE L78437 MOTOR.

1шт.

7

D87271

GEAR

DRIVE GEAR ASSEMBLY - pump

1шт.

8

D87270

GEAR

DRIVEN GEAR ASSEMBLY - pump

1шт.

9

S5627

O-RING,2.114" ID x 2.254" OD x 0.07"

- pump seal

2шт.

10

N9281

LARGE PLATE

SHIELD - heat

1шт.

11

N9282

GASKET

- pump

1шт.

12

N9283

SEAL

- V type

1шт.

13

N9280

LARGE PLATE

PLATE - wear

1шт.

14

D87272

VALVE BLOCK

HOUSING - gear

1шт.

15

F22592

DOWEL

PIN - pump

2шт.

16

N9275

COVER

- port end

1шт.

17

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

4шт.

18

A50773

WASHER

- flat, 5/16"

4шт.
