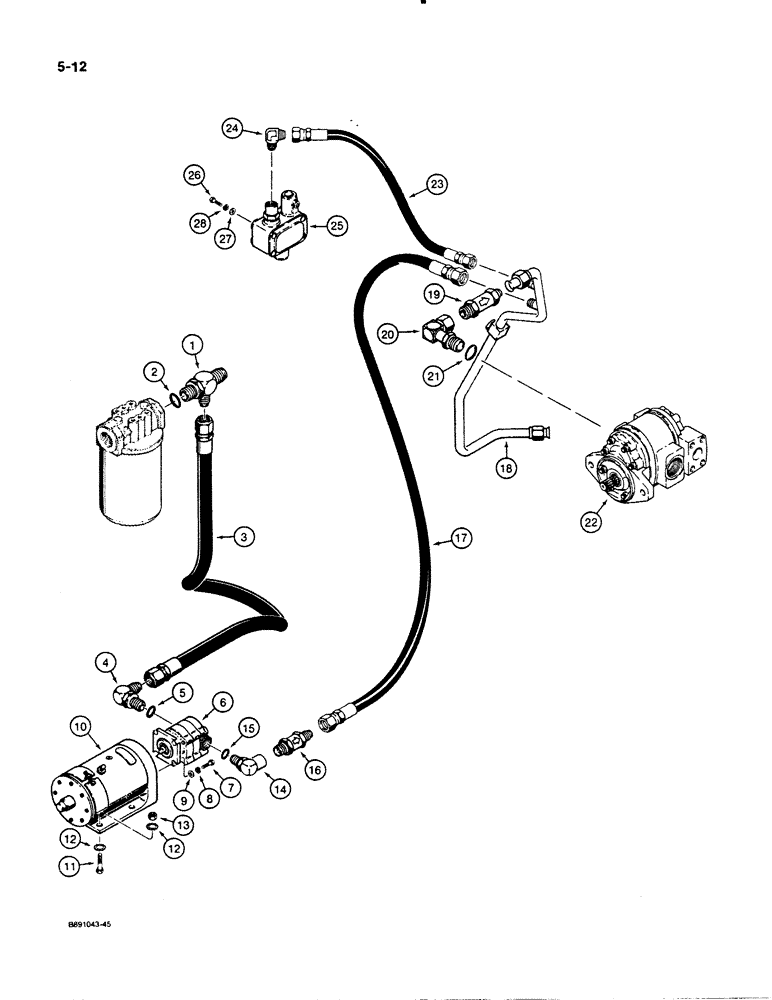

Запчасти Case W11B (5-012) - HYDRAULIC CIRCUIT, *OPTIONAL AUTOMATIC AUXILIARY STEERING (05) - STEERING

1

218-5293

TEE - 7/8-14 flare base x 1-5/8-12 inch flare x adj O-ring boss, Includes: Ref. 2 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

3

L78468

HOSE ASSY.

HOSE - 37" (940 mm) long, tee to auxiliary pump inlet

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

L78440

PUMP

ASSEMBLY - auxiliary steering, parts list Figure 5-14

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

10

L78437

MOTOR

ASSEMBLY - auxiliary steering, parts list Figure 5-16

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

12

193-53

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

8шт.

13

425-106

NUT,3/8"-16, Cl 5

4шт.

14

218-5460

FITTING

ELBOW - 90 degree, adjustable, 3/4 female x 1/2 inch PT, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

L70819

VALVE

- check, at auxiliary steering pump

1шт.

17

L126364

HOSE,0.50" ID x 43.00", SAE 100R2

Check Valve to Loader Supply Tube 0.50" ID x 43.00", SAE 100R2

1шт.

18

L126496

TUBE ASSY.

TUBE - loader supply

1шт.

SUB- PER ECS # 58920-36 RETAIN REF #18

1шт.

REF: 18A L128361 REPLACES REF. 18 WITH NO

1шт.

FOR SERVICE OF UNITS BUILT

1шт.

19

L126503

VALVE, CHECK

VALVE - check, at loader hydraulic pump

1шт.

20

L126497

ELBOW

- 90 degree, special, Includes: Ref. 21

1шт.

REF: 20A L128708 ELBOW AND 218-754 CAPNUT

1шт.

ARE SUB FOR REF. 20 EFFECTIVE

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

22

L117990

PUMP

ASSEMBLY - loader hydraulic, parts list Figure 8-32

1шт.

REF: 22A L127126 PUMP ASSY REPLACES REF: 22 WITH NO SUB- PER ECS # 58920-36 RETAIN

1шт.

REF: 22 FOR SERVICE OF UNITS BUILT

1шт.

23

D138814

HOSE

- 425 mm long, loader supply tube to pressure switch

1шт.

24

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

25

L126826

IGNITION SWITCH

SWITCH - pressure, auxiliary steering, component parts

1шт.

not serviced separately

1шт.

26

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

3шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
