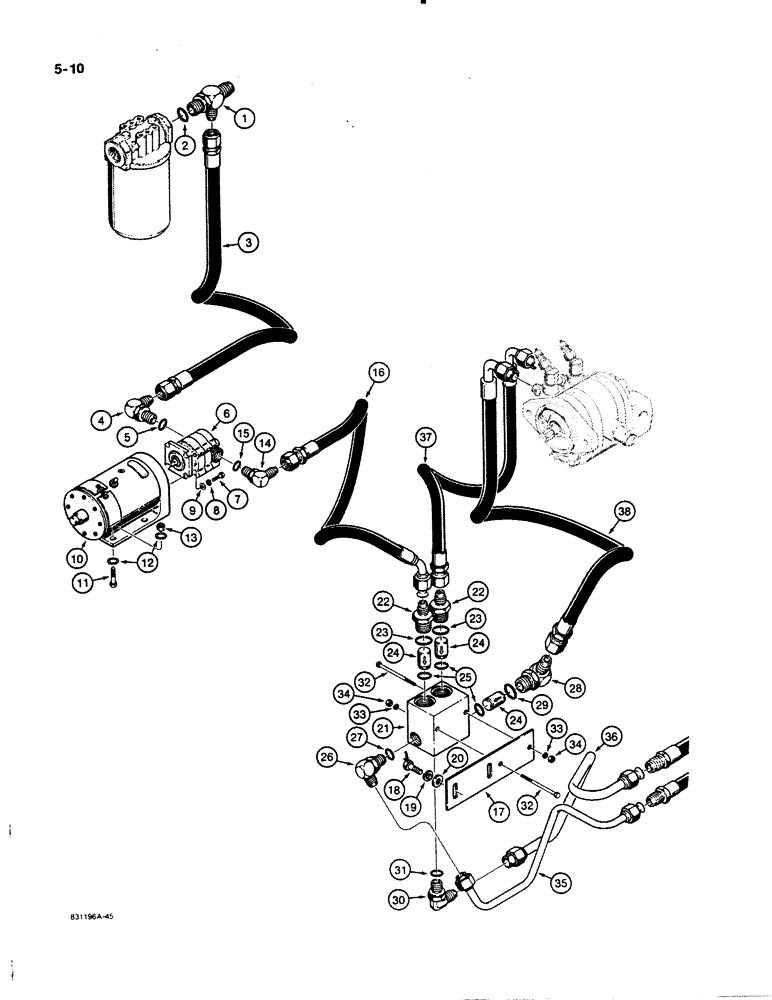

Запчасти Case W11B (5-010) - HYDRAULIC CIRCUIT, *STANDARD AUXILIARY STEERING (05) - STEERING

1

218-5293

TEE - at filter, Includes: Ref. 2 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Tee

1шт.

3

L78468

HOSE ASSY.

HOSE - tee to auxiliary steering pump, 37" (940 mm) long

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread^, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

L78440

PUMP

ASSEMBLY - auxiliary steering, parts list Figure 5-14

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

195-103

WASHER,5/16"

- flat, 5/16 inch

4шт.

10

L78437

MOTOR

ASSEMBLY - auxiliary steering, parts list Figure 5-16

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

12

193-53

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

8шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

L100154

HOSE

ASSEMBLY - pump to check valve assembly, 27" (686 mm) long

1шт.

17

L79867

PLATE

- check valve mounting

1шт.

18

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

2шт.

21

L100163

BLOCK

- check valve

1шт.

22

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref. 23

2шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.

24

L100198

VALVE POPPET

POPPET - check valve

3шт.

25

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- poppet

3шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread^, Incl. Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - 90 degree, adjustable, Includes: Ref. 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.

30

L114091

FITTING

ELBOW - 90 degree, special, Includes: Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

32

113-159

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

2шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

35

L100734

TUBE ASSY.,0.625" OD

TUBE - from check valve side port

1шт.

36

L100158

TUBE ASSY.,0.75" OD

TUBE - from check valve bottom port

1шт.

Hose that #36 connects to is l77031. 20" long. top hose. from hose control valve. per conversation with service. this part is not marked. hose that #35 connects to is l74997. 20" long. bottom hose. from brake control valve.per conversation with service.

1шт.

37

L100140

HOSE

ASSEMBLY - from hydraulic pump, 16" (406 mm) long

1шт.

38

L100141

HOSE

ASSEMBLY - from hydraulic pump, 19" (483 mm) long

1шт.
