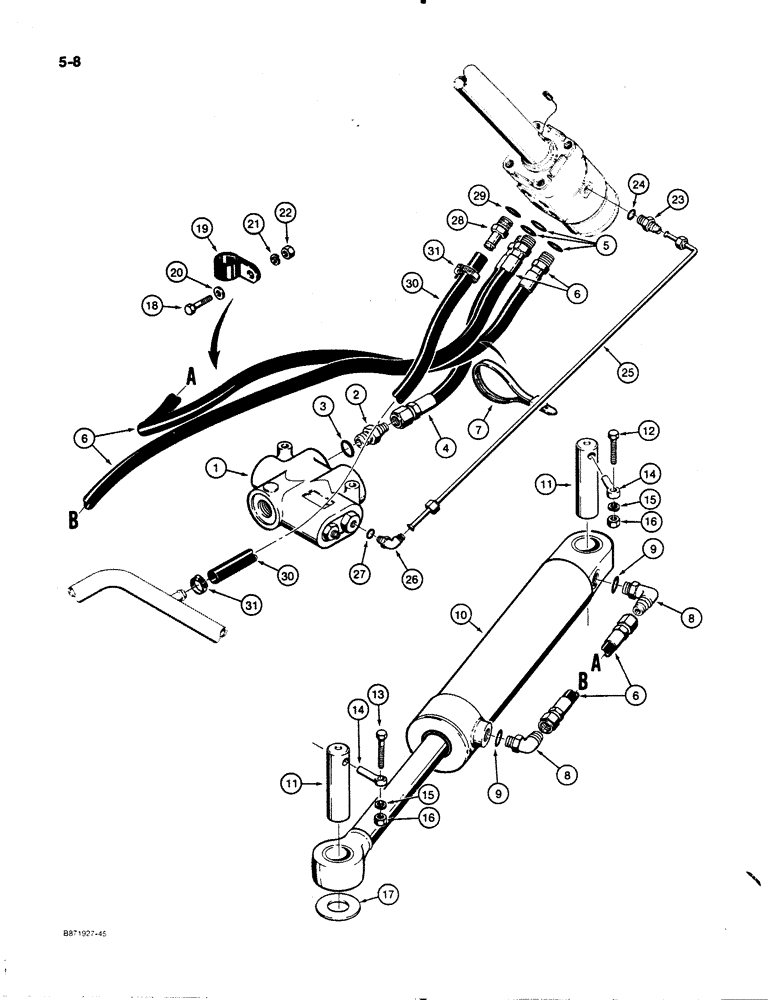

Запчасти Case W11B (5-008) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

L105296

VALVE

FLOW CONTROL VALVE - parts list Figure 8-34

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter - short, O-ring boss, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

L78087

HOSE

- to steering control valve, 20" (508 mm) long

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

6

L74843

HOSE ASSY.,0.38" ID x 50.00"

HOSE ASSY, , To Cylinders 0.38" ID x 50.00"

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

G103549

CYLINDER

ASSEMBLY - steering, parts list Figure 5-18

1шт.

11

L74886

PIN

- cylinder

2шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

13

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

14

R17756

ROD,12.7mm OD x 109.54mm L

PIN - eye

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

17

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

- special

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- medium c1osed, 3/4 inch diameter

1шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

23

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - swivel, 7/16-20 inch thread, Incl. Ref. 24

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

25

L79672

TUBE,0.25" OD x 23.02, 2.39" L

- drain

1шт.

26

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 inch thread, Includes: Ref. 27

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

28

217-182

FITTING,1/2" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, Includes: Ref. 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

D65486

HOSE

- return, 26" (660 mm) long x 1/2" (12.7 mm) ID

1шт.

31

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.
