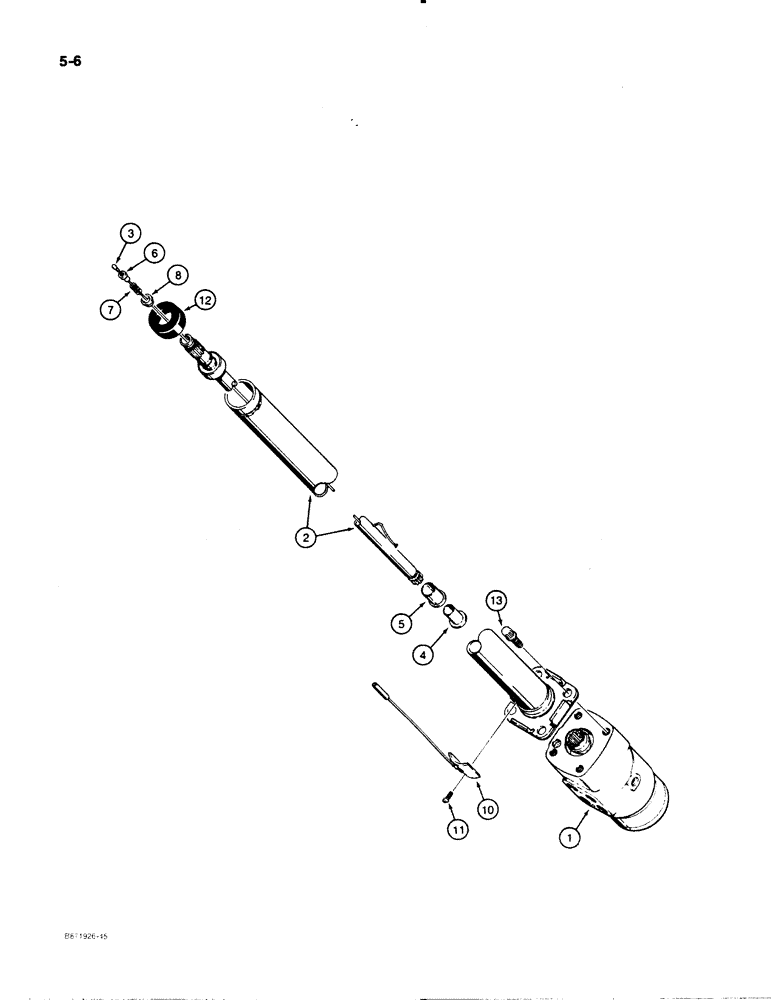

Запчасти Case W11B (5-006) - STEERING CONTROL VALVE WITH COLUMN (05) - STEERING

L78473

PINION

CONTROL VALVE AND COLUMN ASSEMBLY - steering, Includes: Ref. 1 - 13

1шт.

1

D82803

VALVE

CONTROL VALVE ASSEMBLY - steering, parts list Figure 5-4

1шт.

S238868

STEERING COLUMN

COLUMN ASSEMBLY - steering, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

COLUMN AND SHAFT - steering

1шт.

3

N60346

ELECTRICAL WIRE

WIRE AND TERMINAL - steering column

1шт.

4

S63470

INSULATOR

- plastic ring

1шт.

5

S63469

RING

- contact

1шт.

6

S63454

CONTACT

INSULATOR - terminal

1шт.

7

S63458

CONTACT

SPRING - insulator

1шт.

8

S63467

WASHER

RETAINER - spring

1шт.

S109356

BRUSH, COMMUTATOR

KIT - insulator and brush, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GREASE PACKAGE - not shown

1шт.

10

NSS

NOT SOLD SEPARAT

INSULATOR AND BRUSH - steering column

1шт.

11

187-1116

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

SCREW - self-tapping, No. 10 - 24 NF x 1/4", plated

2шт.

12

S115351

CAP

SEAL - cap

1шт.

13

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3/4", used for shipping purposes only, see Refs. 22-30 on Figure 5-3

2шт.
