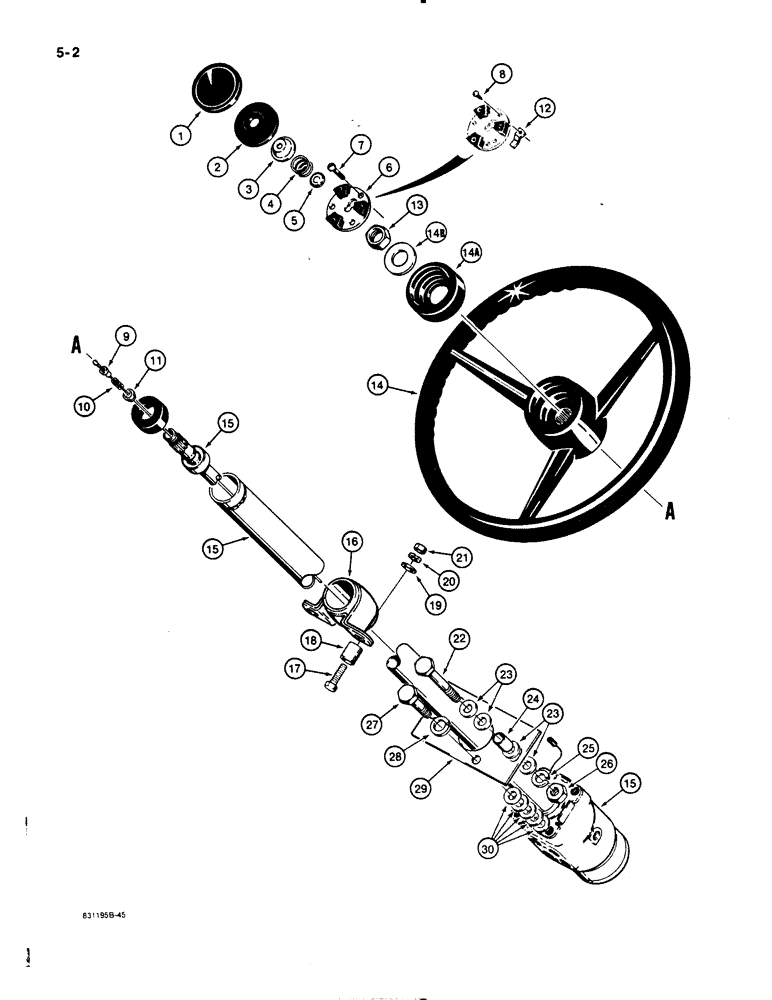

Запчасти Case W11B (5-002) - STEERING WHEEL AND COLUMN (05) - STEERING

A16843

BUTTON

ASSEMBLY - horn, uses Ref. 10 spring, no longer available, order L114161 button assembly, Includes: Ref. 1 - 12

1шт.

L114161

BUTTON

ASSEMBLY - horn, uses Ref. 12 spring, Includes: Ref. 1 - 12

1шт.

1

A13088

CAP

COVER - horn button

1шт.

2

A13089

BUTTON

- horn

1шт.

3

A13092

CAP

CUP - contact

1шт.

4

A13091

SPRING

- horn button

1шт.

5

A13090

CAP

CUP - contact

1шт.

6

N9013

PLATE

- horn

1шт.

7

24379R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 32 NC x 1/2", used with A16843 button assembly only

3шт.

8

168-25

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- drive, round head, No. 10 x 5/8", used with L114161 button assembly only

3шт.

9

A13058

FERRULE

INSULATOR - terminal

1шт.

10

A13059

SPRING

- insulator, used with A16843 button assembly only

1шт.

11

A13057

CUP ASSY.

RETAINER - spring, used with A16843 button assembly only

1шт.

12

N14635

CLIP

SPRING - insulator, used with L114161 button assembly only

1шт.

13

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, wheel

1шт.

14

L78204

WHEEL

- steering, replaced by A65544 steering wheel. When ordering new steering wheel, Refs. 14A and 14B must also be ordered

1шт.

14

A65544

STEERING WHEEL

1шт.

14a

L60175

ADAPTER

- horn

1шт.

14b

495-81262

WASHER,1.02" ID x 2" OD x 0.05" Thk

- flat, 1-1/64 x 2 x 1/8 inch

1шт.

15

L78473

PINION

CONTROL VALVE - steering, parts list Figures 5-4 and 5-6, includes column

1шт.

16

L105044

BEARING

- steering column

1шт.

17

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

D76209

SPACER

- bolt

2шт.

19

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

23

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

8шт.

24

D40925

SPACER

- bolt

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

L76648

BRACKET

- mounting

1шт.

30

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

10шт.
